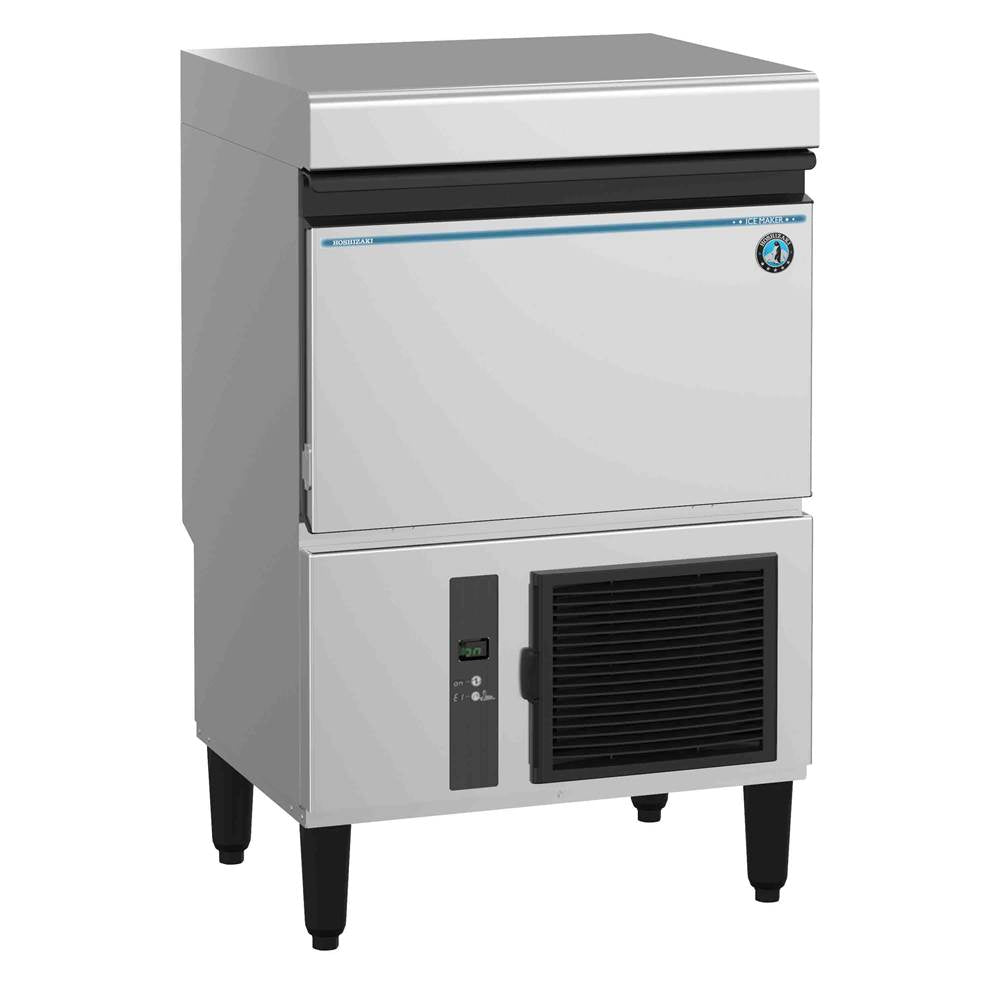

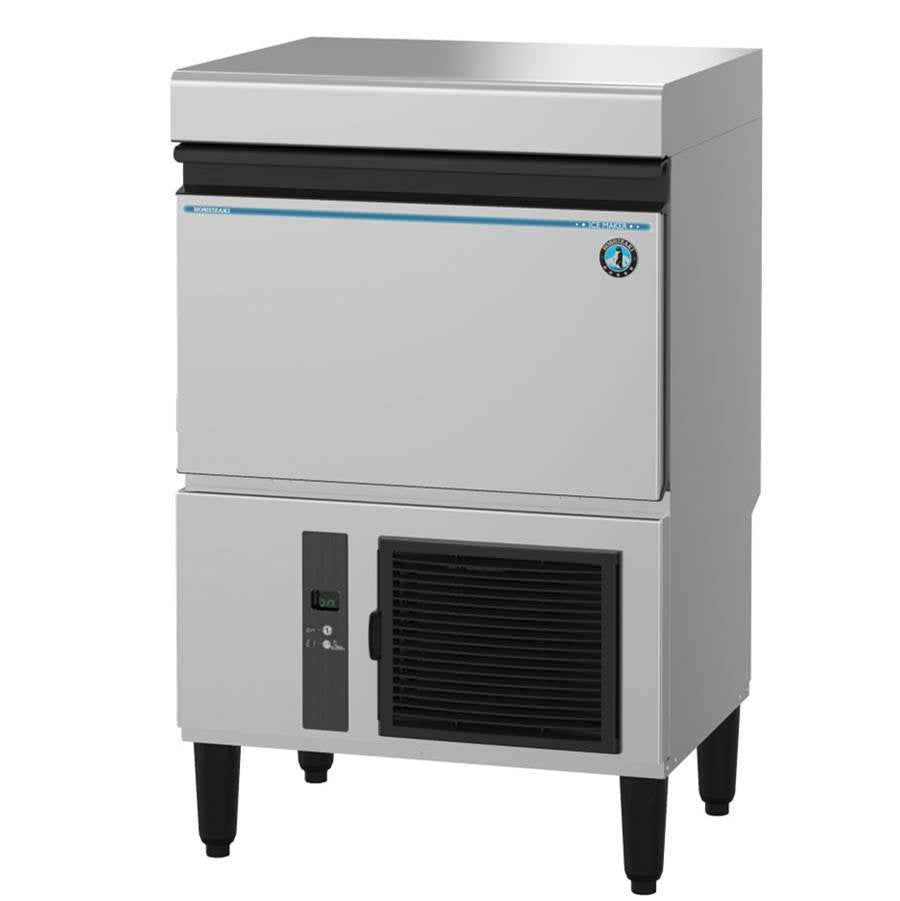

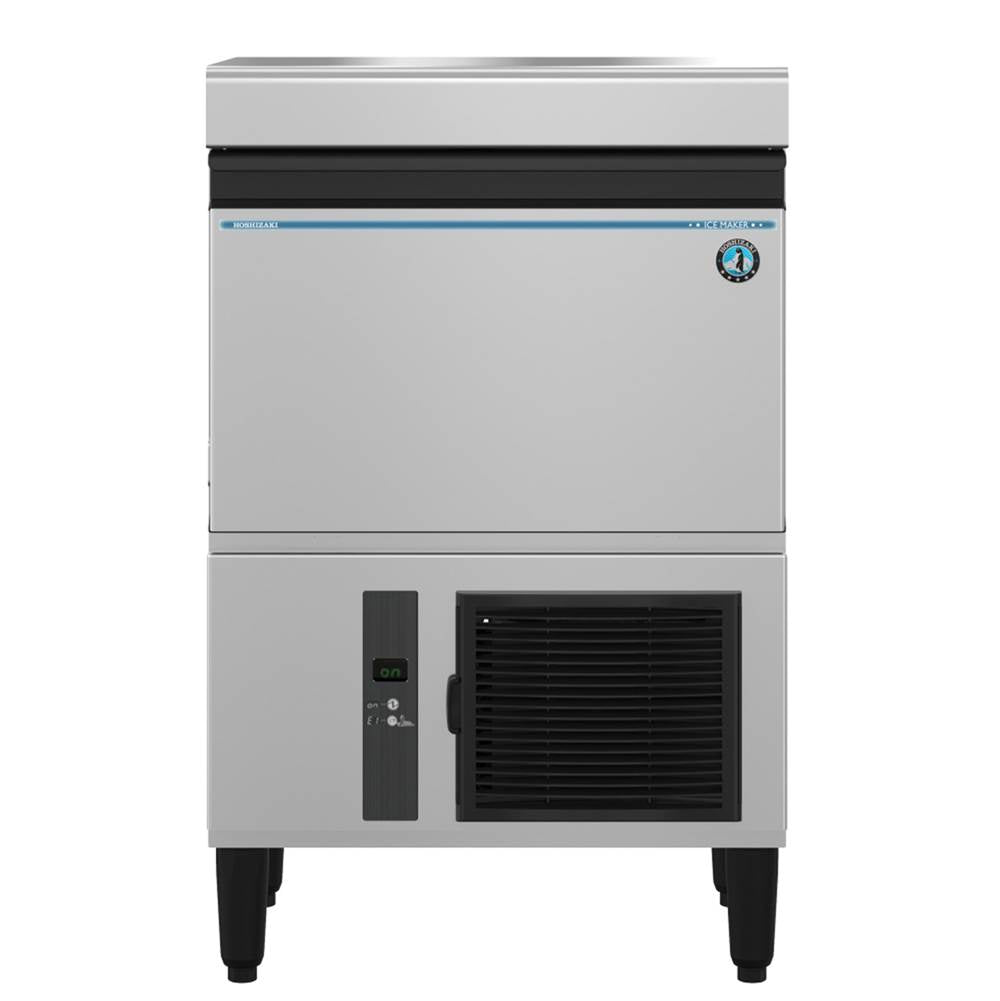

Hoshizaki America - Cubers {specialty Ice}

The IM-50BAA-Q is capable of producing approximately 50 lbs. of individual sphere cubes. The sphere cube shape melts very slowly, chilling beverages with very minimal dilution. This air-cooled, built in storage bin icemaker features Up to 36 lbs. of built-in storage capacity (cu-ft). The IM-50BAA-Q is a single phase, 115 V/60/1, 6.5 ft cord with NEMA 5-15 plug and uses R-134a refrigerant (7.1 oz/201 g). Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time. Please consult the specification sheet for additional details. Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100 percent of total volume x 30 lbs./cu-ft average density of ice. .

• Up to 50 lbs. or 500 spheres of ice produced per 24 hr
• Up to 36 lbs. of built-in storage capacity (cu-ft)
• Produces individual sphere cubes
• Durable stainless steel exterior
• Front in, front out airflow
• Foam injected polyurethane for insulation (HFC free)
• Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time
• R-134a refrigerant (7.1 oz/201 g)
• Single phase, 115 V/60/1, 6.5 ft cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span

SKU: IM-50BAA-Q

Width: 24.75 in

Height: 39.5 in

Depth: 20.75 in

Ship Length: 30 in

Ship Width: 24.6 in

Ship Height: 38.4 in

Ship Weight: 168 lbs

Material: Stainless Steel

Oversized: Yes

Voltage: 115

Video1: https://youtu.be/im1qHFWdUU0
