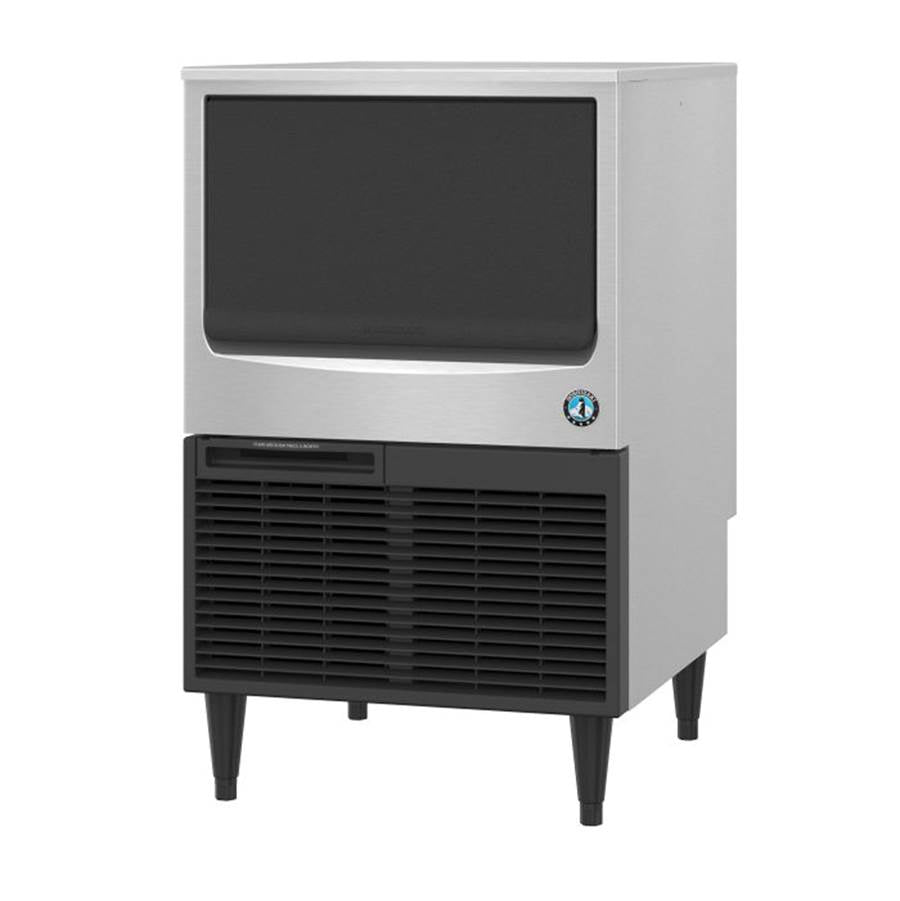

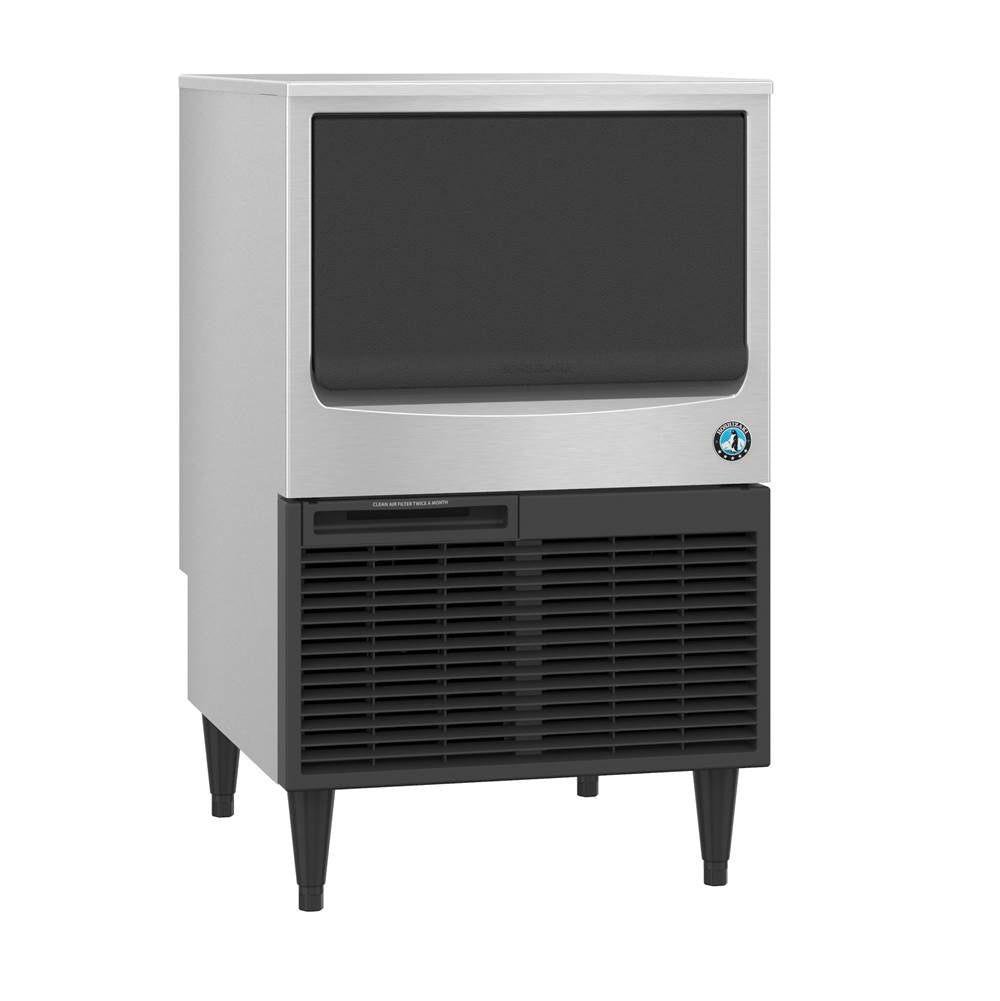

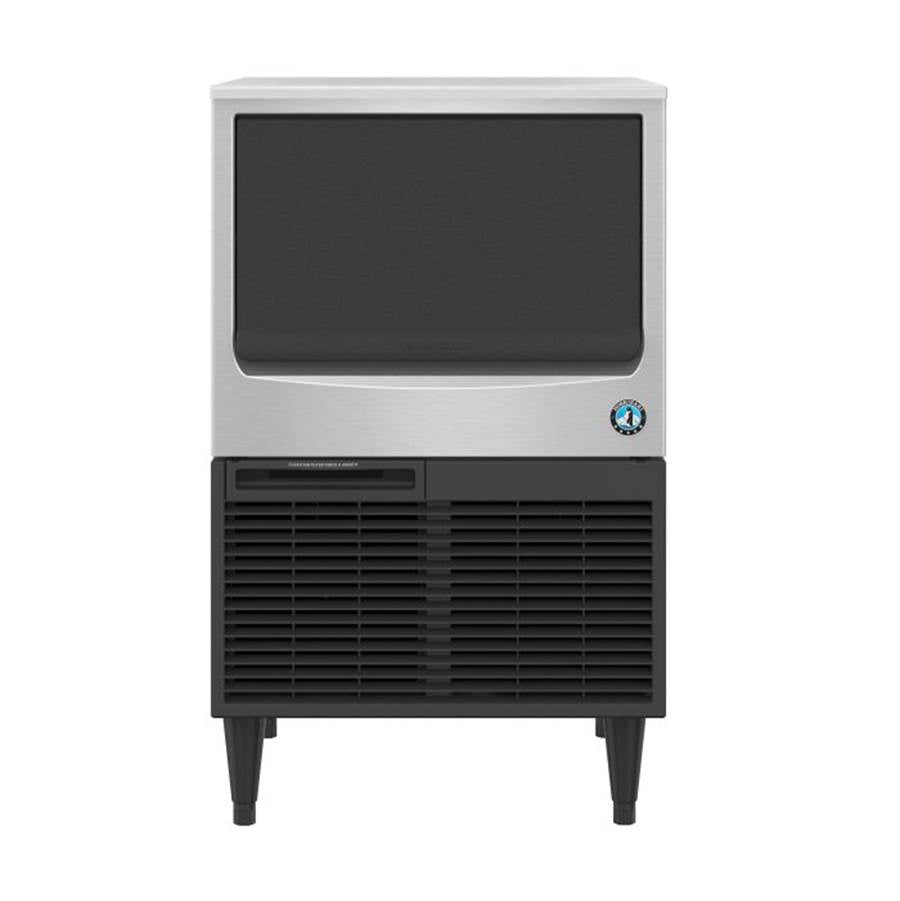

Hoshizaki America - AM and KM Undercounter Cubers with Built-in Bins

The KM-116BAJ is capable of producing approximately 125 lbs. of crescent cubed ice. This undercounter air-cooled, built in storage bin icemaker stores up to 53 lbs. of ice, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver design and includes the EverCheck alert system making the unit simple to maintain. The KM-116BAJ requires a single phase, 115 V/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Energy Star qualified. Please consult the specification sheet for additional details. Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100 percent of total volume x 30 lbs./cu-ft average density of ice. Replaces KM-115BAJ.

• Up to 125 lbs. of ice produced per 24 hr
• Up to 53 lbs. of built-in storage capacity (1.8 cu-ft)
• Produces crescent shaped ice cubes
• Slide in door with durable stainless steel exterior
• Front in, front out airflow
• EverCheck alert system
• CycleSaver design
• HS-5061 drain pump assembly, sold separately
• R-134a refrigerant (7.8 oz/221 g)
• Single phase, 115 V/60/1, 6.5 ft cord with NEMA 5-15 plug

SKU: KM-116BAJ

Width: 23.75 in

Height: 39 in

Depth: 24 in

Ship Length: 27 in

Ship Width: 27 in

Ship Height: 39 in

Ship Weight: 146 lbs

Material: Stainless Steel

Mounting: Uncercounter

Voltage: 115

Video1: https://youtu.be/X459LJhUbBE
