Hoshizaki America - AM and KM Undercounter Cubers with Built-in Bins

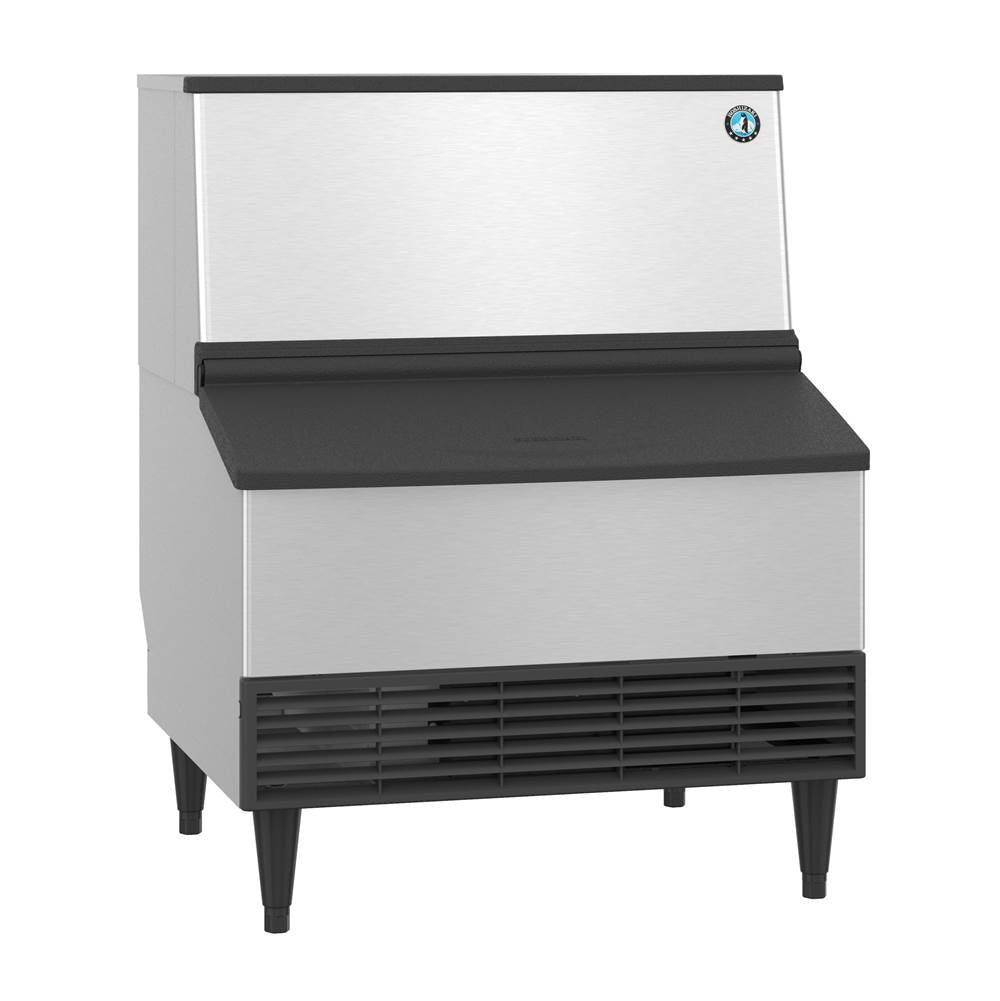

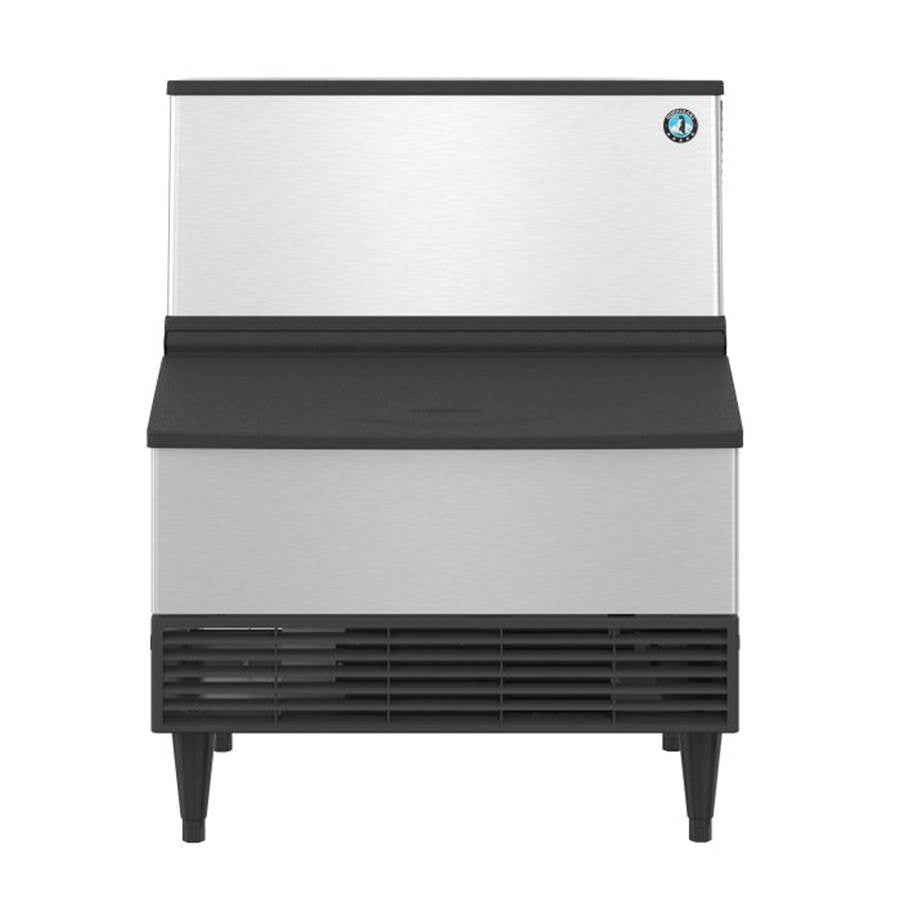

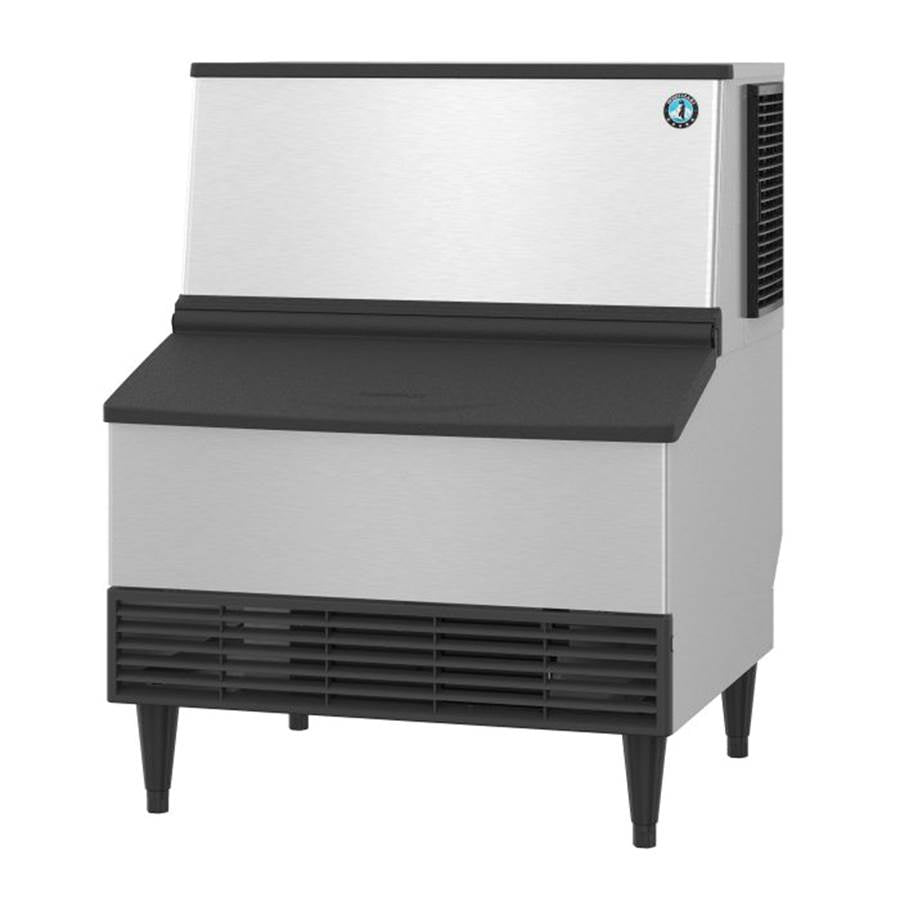

The KM-301BAJ is capable of producing approximately 290 lbs. of crescent cubed ice. This undercounter air-cooled, built in storage bin icemaker stores up to 100 lbs. of ice, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver design and includes the EverCheck alert system making the unit simple to maintain. The KM-301BAJ requires a single phase, 115 V/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the specification sheet for additional details. Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100 percent of total volume x 30 lbs./cu-ft average density of ice. Replaces KM-300BAJ.

• Up to 290 lbs. of ice produced per 24 hr
• Up to 100 lbs. of built-in storage capacity (3.3 cu-ft)
• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• Front in, front out airflow
• EverCheck alert system
• CycleSaver design
• Ice bin opening is ADA compliant
• R-404a refrigerant (13.4 oz/380 g)
• Single phase, 115 V/60/1, 6.5 ft cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span

SKU: KM-301BAJ

Width: 30 in

Height: 39 in

Depth: 28 in

Ship Length: 34 in

Ship Width: 33 in

Ship Height: 39 in

Ship Weight: 206 lbs

Material: Stainless Steel

Mounting: Uncercounter

Oversized: Yes

ADA: Yes

Voltage: 115

Video1: https://youtu.be/X459LJhUbBE
