Hoshizaki America - Remote Condensers

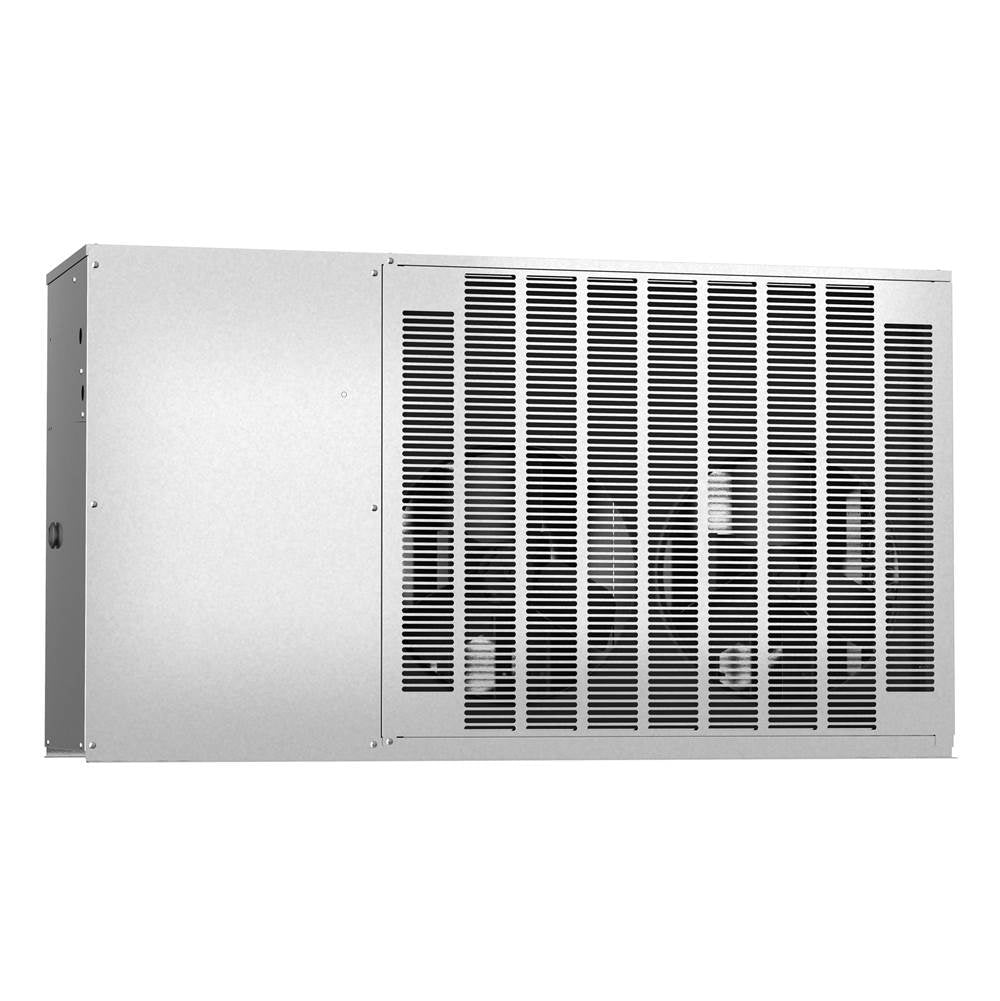

The SRK-12J3, SRK series remote condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This remote condenser can be installed away from the ice maker using brazing and refrigerant required (25 ft, 35 ft, 55 ft), tubing kits sold separately. Contact tech support if installations exceed these distances. The SRK-12J3 remote condenser operates on Three Phase, 230v/60/3, Must be hardwired at the site (4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required.), and R-404a refrigerant (15 lbs. 14 oz/7200 g). Compatible icemakers, sold separately: KMS-1122MLJ-3. The unit is UL listed and includes a three years: parts and labor warranty on entire unit, five years: parts warranty on air-cooled condenser coil.

• Quiet operation
• Weather resistant cabinet for longer life
• Must be hardwired at the site (4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required.)
• Allow 24'' clearance for best performance
• Three phase, 230 V/60/3, must be hardwired at the site (4 wire, including ground, if neutral is not available transformer kit (HS-5030) is required)
• R-404a refrigerant (15 lbs. 14 oz/7200 g)
• Compatible icemakers, sold separately: KMS-1122MLJ-3

SKU: SRK-12J3

Collection: Srk

Width: 52.37 in

Height: 43 in

Depth: 19.5 in

Ship Weight: 275 lbs

Oversized: Yes

Voltage: 230
