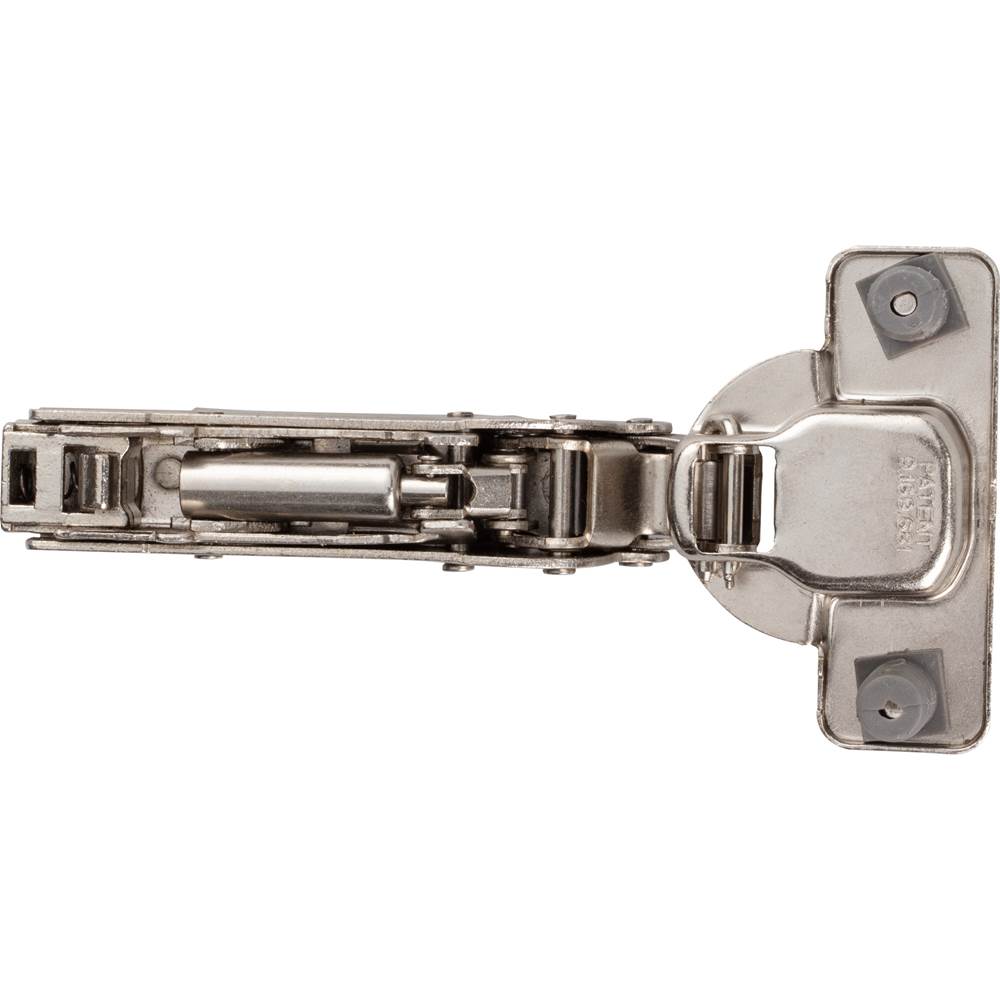

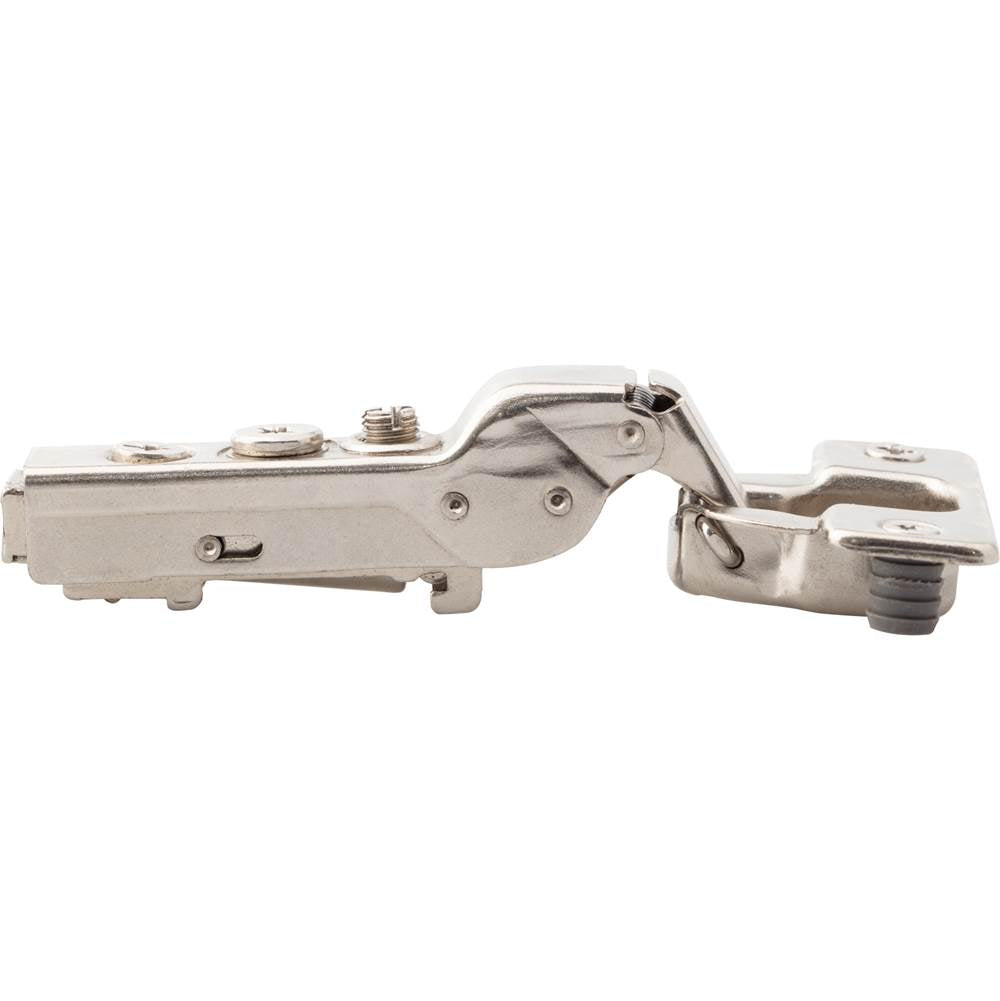

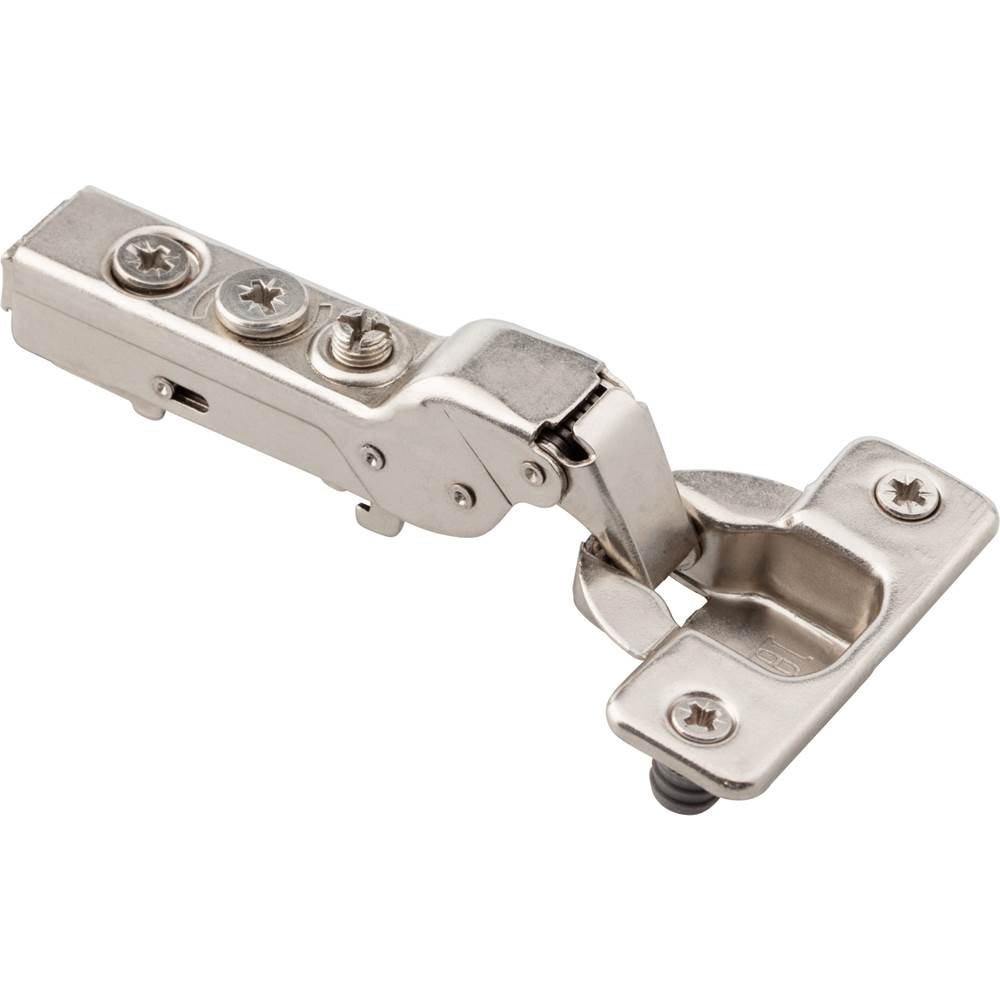

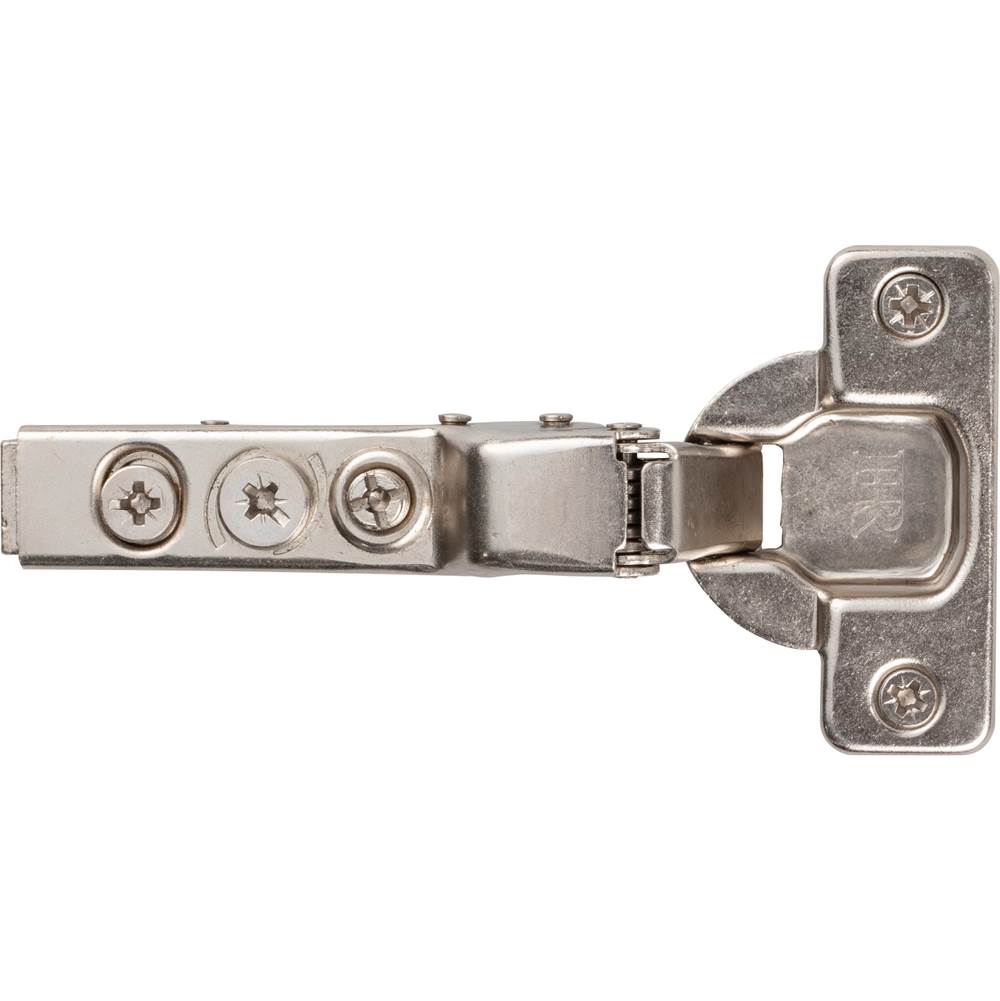

Hardware Resources - 110 degree 9 mm Crank Cam Adjustable Heavy Duty Adjustable Soft-close Hinge with Press-in 8 mm Dowels - Polished Nickel

Patented integrated soft-close European hinge with the ability to fine tune closing speed based on the size and weight of the door, Heavy duty spring and linkage system, Grade 2 ANSI/BHMA certified to ANSI 100,000 cycles, 9 mm Crank

• Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
• Hinge and plate provide 6-way adjustability
• Cold rolled steel with nickel plating
• 45 mm boring pattern
• 2-stop action
• Compatible with 600 Series Plates

SKU: 1750.0179.25

Model: Hre-1750-0179-25

UPC: 840002550987

Finish: Polished Nickel

Finish Group: Nickel Tones

Weight: 0.21 lbs

Ship Length: 4 in

Ship Height: 4 in

Ship Weight: 0.51 lbs

Length: 2.83 in

Country: China

Material: Steel

UOM: Each

Min Order Qty: 1

Intro Date: 2021-01-04 00:00:00.000
