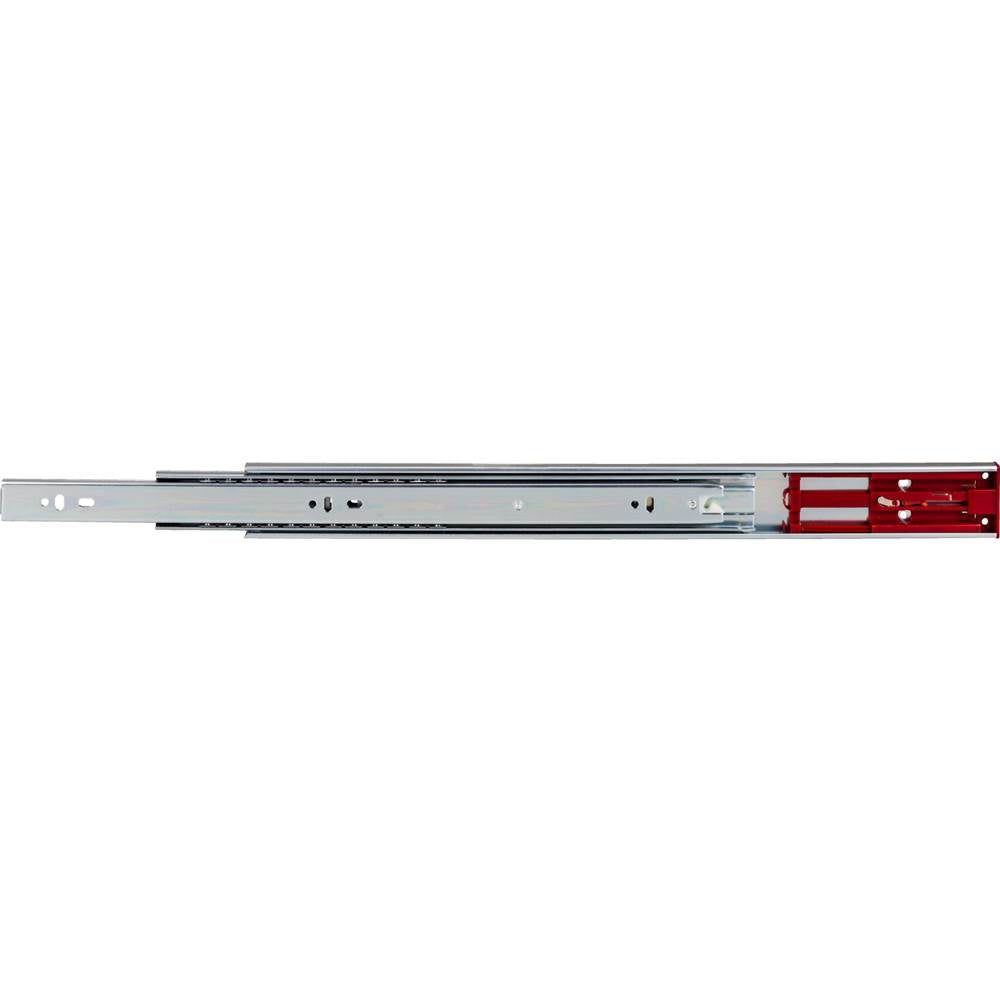

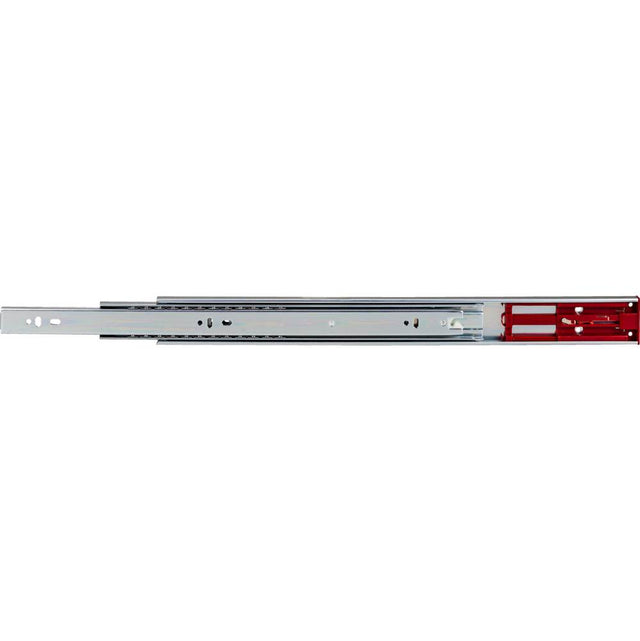

Hardware Resources - 14'' Heavy Duty Push-to-Open 100 lb Full Extension Side Mount Ball Bearing Slides - Zinc

Push to open is designed for a clean modern look or where decorative hardware is not desired, Lubricated steel ball bearings with cage hold forward - retains cage during drawer member installation, Grade 1 ANSI/BHMA certified with 100 lb dynamic weight rating

• Non-handed trigger disconnect release
• 45 mm profile height
• 1/2'' side spacing
• 1.0 mm x 1.0 mm x 1.2 mm cold rolled steel material
• Clear zinc electroplated finish
• 6.3 mm Euro screw or No.8 x 7/16'' truss head screw is recommended
• For inset applications no special installation required
• For overlay application, allow 1/8'' clearance for push-to-open mechanism

SKU: 303-200-14

Model: Hre-303-200-14

UPC: 840002547239

Finish: Zinc

Finish Group: Silver

Height: 1.77 in

Weight: 1.84 lbs

Ship Length: 15 in

Ship Height: 15 in

Ship Weight: 2.14 lbs

Length: 14 in

Country: China

Material: Steel

UOM: Pair

Min Order Qty: 1

Intro Date: 2019-10-14 00:00:00.000
