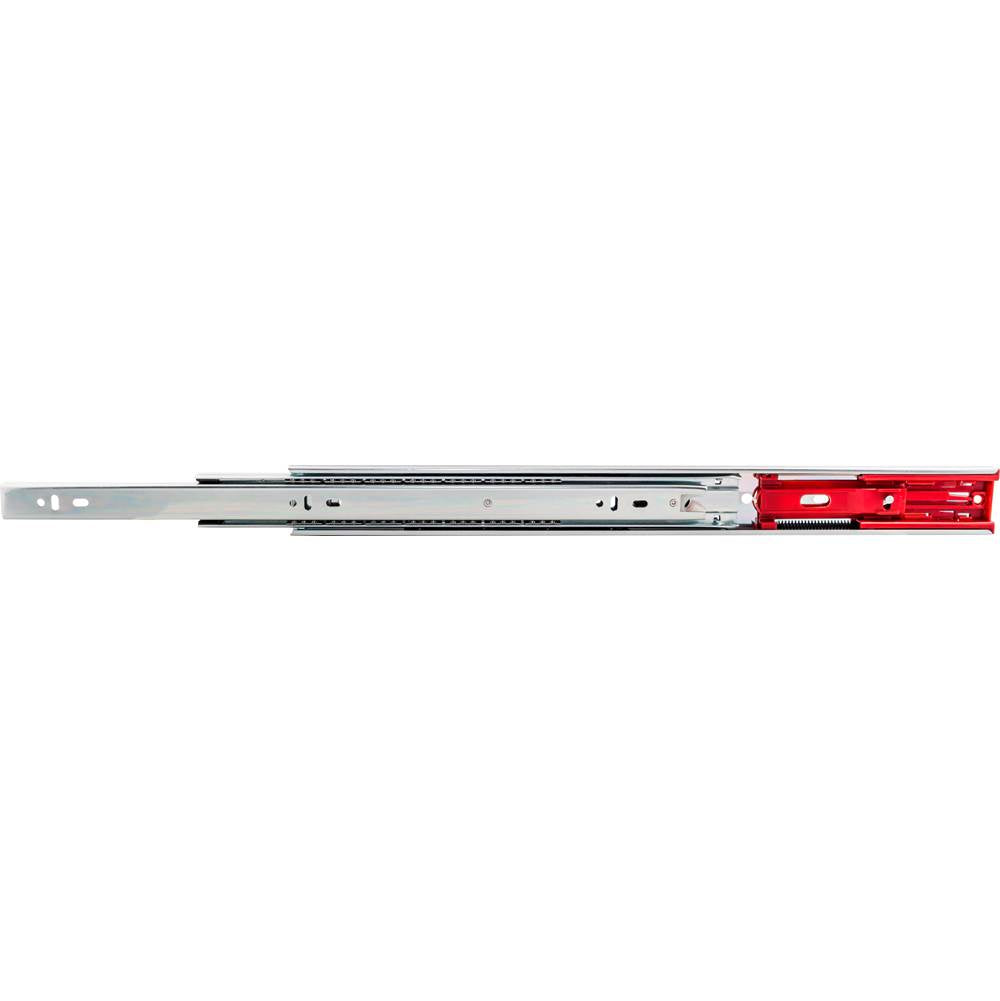

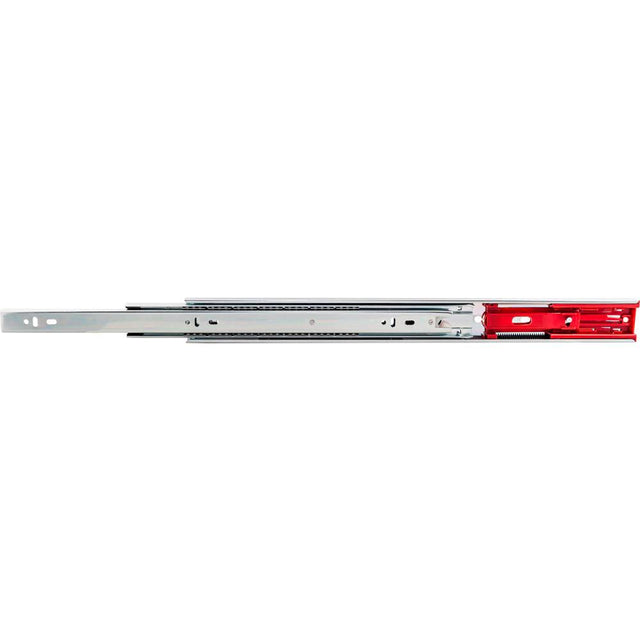

Hardware Resources - 12'' Heavy Duty Dura Close EZ Open Soft-Close 100 lb Full Extension Side Mount Ball Bearing Slides - Zinc

Full Extension Heavy Duty Dura Close Soft-close slide with relaxed pull force and ease of opening, Cage hold forward - retains cage during drawer member installation, Synthetic rubber hold-in detent - prevents bounce back and roll out, Grade 1 ANSI/BHMA certified with 100 lb static weight rating

• Only requires 1/2'' side spacing to maximize drawer space
• Non-handed trigger disconnect release
• 1.0 mm x 1.0 mm x 1.2 mm cold rolled steel material
• 45 mm profile height
• Clear zinc electroplated finish
• Installation brackets available
• 6.3 mm Euro screw or No.8 x 7/16'' truss head screw is recommended

SKU: 303-300-12

Alt SKU: HR-303-300-12

Model: Hre-303-300-12

UPC: 843512074707

Finish: Zinc

Finish Group: Silver

Width: 0.96 in

Height: 1.77 in

Weight: 1.76 lbs

Ship Length: 13 in

Ship Width: 2 in

Ship Height: 13 in

Ship Weight: 2.06 lbs

Length: 12 in

Country: China

Material: Steel

UOM: Pair

Min Order Qty: 1

Intro Date: 2017-01-23 00:00:00.000
