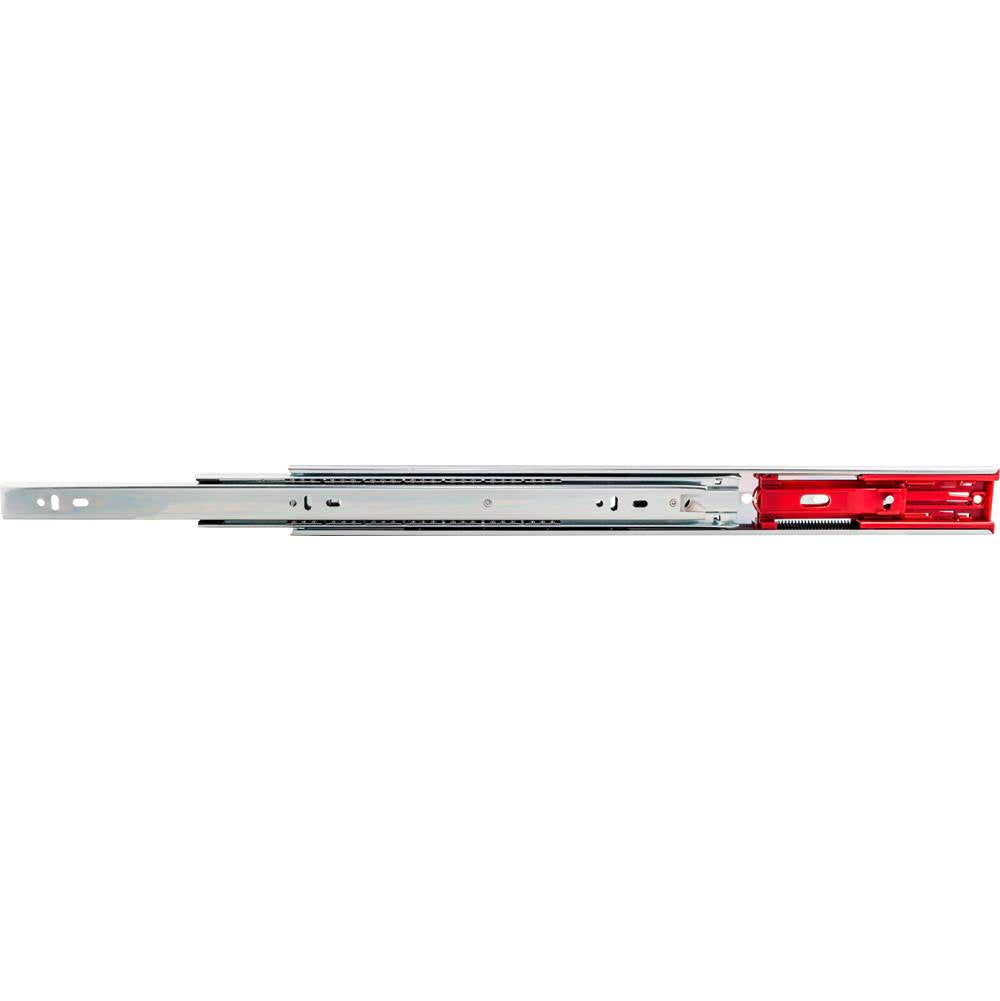

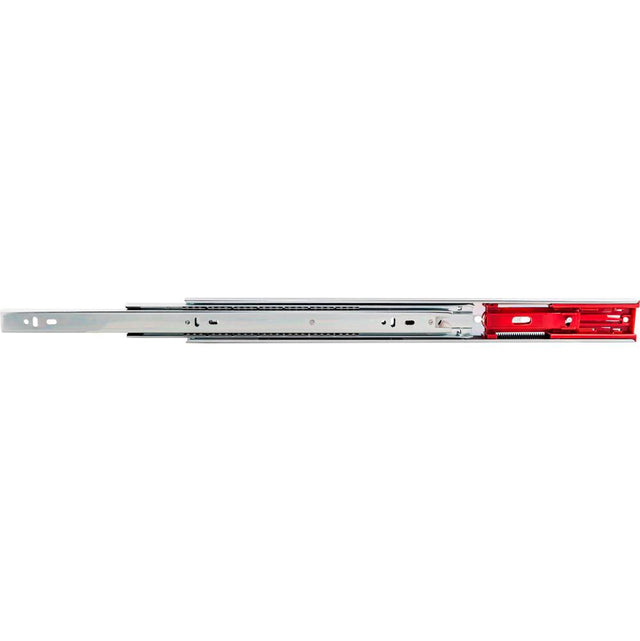

Hardware Resources - 18'' Heavy Duty Dura Close EZ Open Soft-Close 100 lb Full Extension Side Mount Ball Bearing Slides - Retail Pack - Zinc

Full Extension Heavy Duty Dura Close Soft-close slide with relaxed pull force and ease of opening, Cage hold forward - retains cage during drawer member installation, Synthetic rubber hold-in detent - prevents bounce back and roll out, Grade 1 ANSI/BHMA certified with100 lb static weight rating

• Only requires 1/2'' side spacing to maximize drawer space
• Non-handed trigger disconnect release
• 1.0 mm x 1.0 mm x 1.2 mm cold rolled steel material
• 45 mm profile height
• Clear zinc electroplated finish
• Installation brackets available
• Retail Pack - includes screws and instructions
• 16ea No.8 7/16'' screws

SKU: 303-300-18-R

Alt SKU: HR-303-300-18-R

Model: Hre-303-300-18-r

UPC: 843512078873

Finish: Zinc

Finish Group: Silver

Width: 0.96 in

Height: 1.77 in

Weight: 2.59 lbs

Ship Length: 19 in

Ship Width: 2 in

Ship Height: 19 in

Ship Weight: 2.89 lbs

Length: 18 in

Country: China

Material: Steel

UOM: Pack

Min Order Qty: 1

Intro Date: 2019-01-21 00:00:00.000
