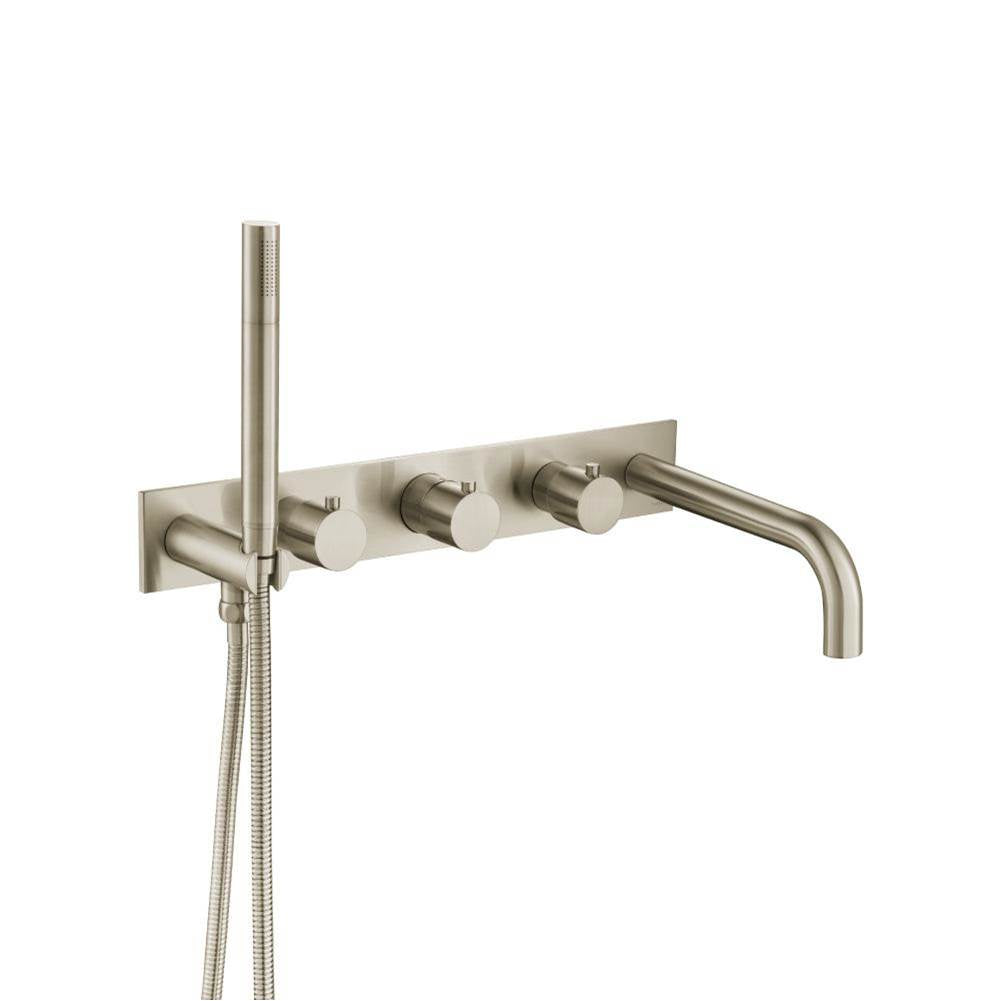

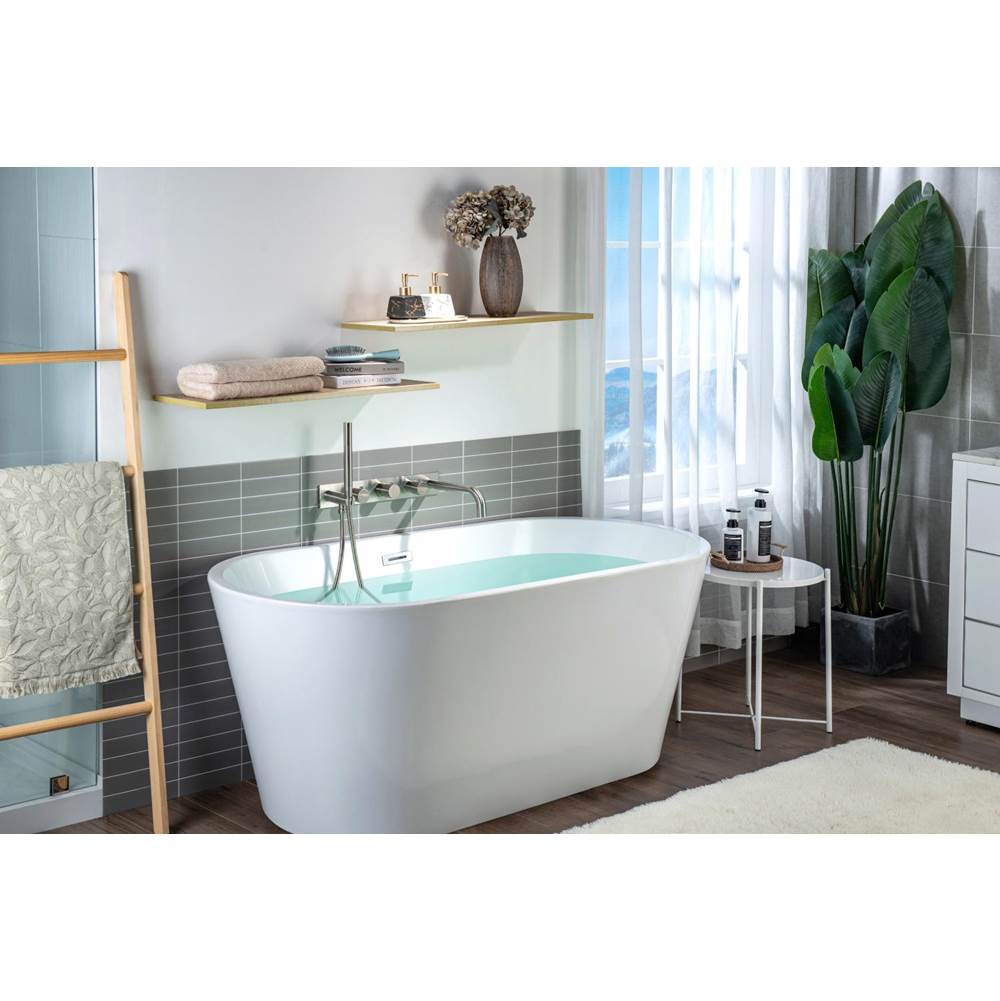

Isenberg By Flusso - Wall Mount Tub Filler With Hand Shower - Brushed Nickel PVD

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691AG

Model: Isg-100-2691

UPC: 716894069240

Collection: Serie 100

Finish: Army Green

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691BP

Model: Isg-100-2691

UPC: 716894069245

Collection: Serie 100

Finish: Blue Platinum

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

The 100.2691 Thermostatic valve features 3/4'' NPT connections and has 2 volume controls, one for tub spout and other for hand shower output. The valve has a flow rate of 8.0 GPM at 60 PSI. Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs. Handle Operation - The middle handle is used to control the temperature of water flowing through the 2 outlets. The volume of water is control by either of the 2 volume control handles on each side of the temperature control handle. Both the volume controls are independent of each other and water can flow through both the outlets (hand shower and tub spout) simultaneously. As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the finished tile which should be between 2.71'' and 3.46'' inches (Rough In Spec). Also the value must be installed straight and not at an angle or upside down. In case, the tile is thicker or valve is installed in the wall is too deep, extension kits are available and can be used for elongating the handles of the valve. Cut Out Dimensions - The cut out in wall should be 16.41 X 1.85 Inches and no more. This will ensure that the trim plate will cover the cut out hole in the wall. Trims - The trims comprise of well finished trim plate, handle knobs and tub spout, hand held holder, hand held and hose. The trim plate is used to cover the wall and has markings for HOT/COLD for temperature control handle and ON/OFF for volume control handles. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the handle knob which has a push button on the side. In order to adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

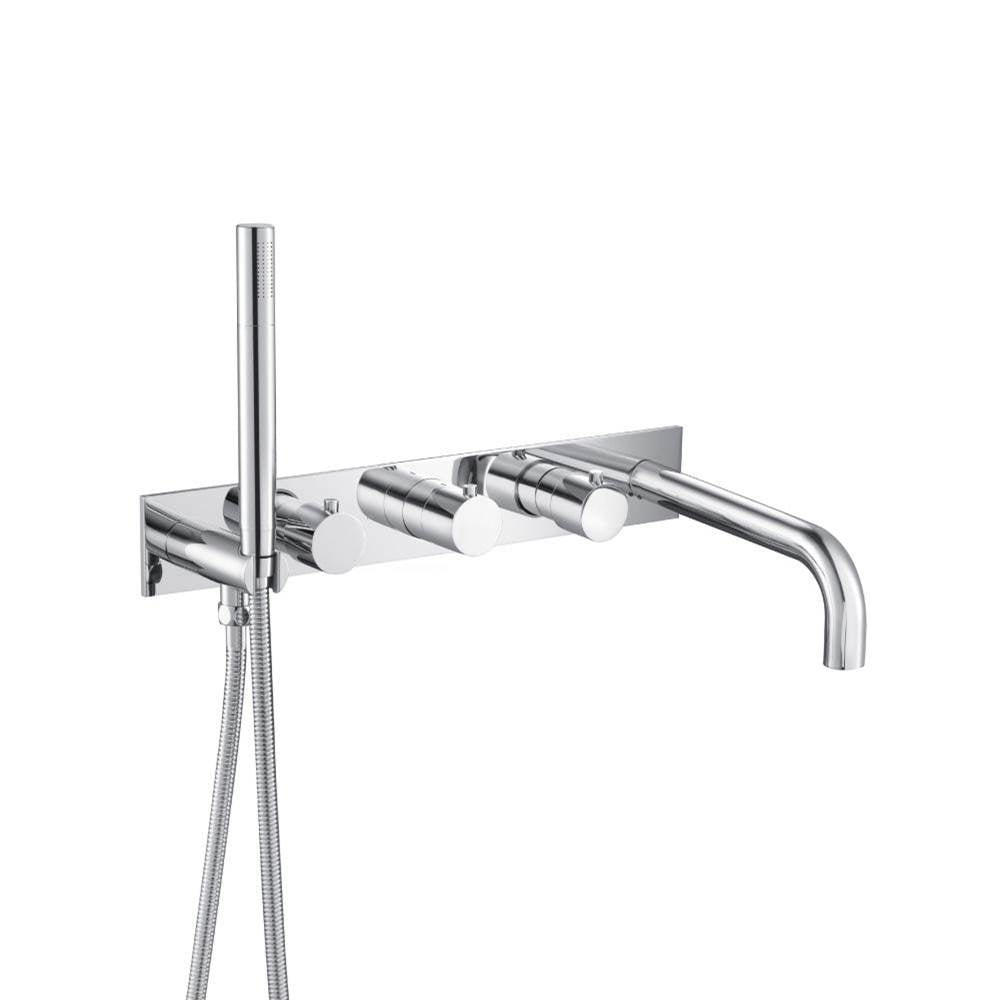

SKU: 100.2691CP

Model: Isg-100-2691

UPC: 716894069251

Collection: Serie 100

Finish: Chrome

Finish Group: Chrome

Width: 17.52 in

Height: 2.36 in

Ship Length: 24 in

Ship Width: 9 in

Ship Height: 7 in

Ship Weight: 16 lbs

Length: 8.85 in

Country: US

Mounting: Wall

Style List: Contemporary,Modern

Flow Rate GPM: 1.8 GPM

Made In USA: Yes

Number of Handles: 3

Video1: https://youtu.be/dS8PMizwW7o

Video 2: https://player.vimeo.com/video/811845072

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691CR

Model: Isg-100-2691

UPC: 716894069248

Collection: Serie 100

Finish: Crimson

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691DG

Model: Isg-100-2691

UPC: 716894069241

Collection: Serie 100

Finish: Dark Grey

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691DGR

Model: Isg-100-2691

UPC: 716894069233

Collection: Serie 100

Finish: Dark Green

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691DR

Model: Isg-100-2691

UPC: 716894069238

Collection: Serie 100

Finish: Deep Red

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

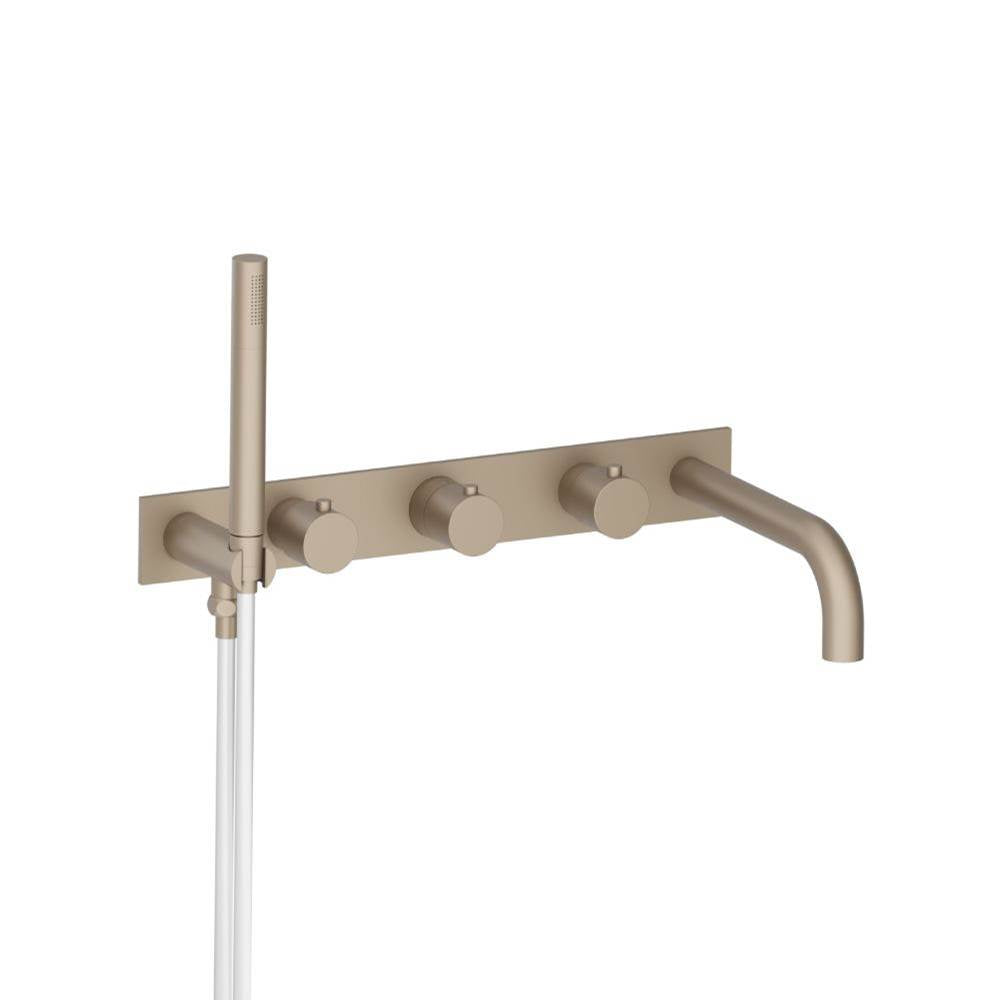

SKU: 100.2691DT

Model: Isg-100-2691

UPC: 716894069232

Collection: Serie 100

Finish: Dark Tan

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

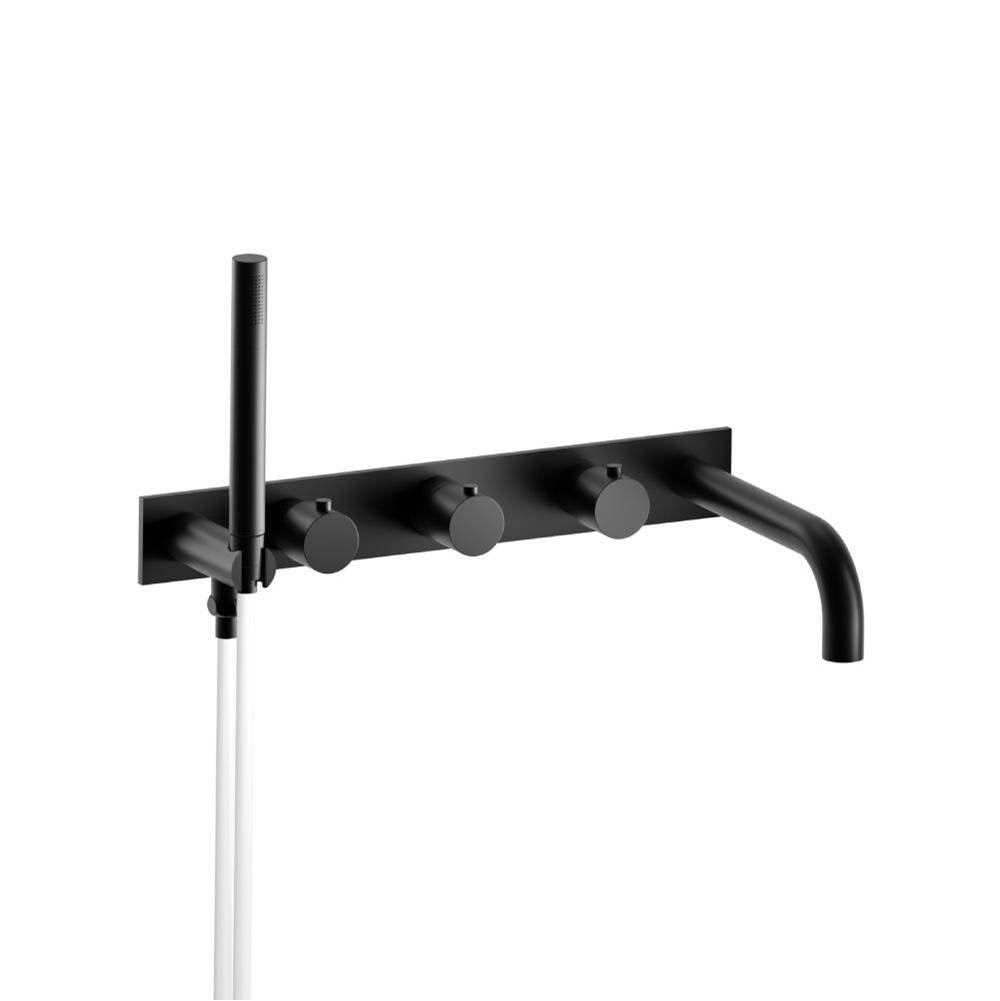

SKU: 100.2691GB

Model: Isg-100-2691

UPC: 716894069244

Collection: Serie 100

Finish: Gloss Black

Finish Group: Black

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691GMG

Model: Isg-100-2691

UPC: 716894069249

Collection: Serie 100

Finish: Gun Metal Grey

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E**

SKU: 100.2691GW

Model: Isg-100-2691

UPC: 716894069247

Collection: Serie 100

Finish: Gloss White

Finish Group: White

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691IG

Model: Isg-100-2691

UPC: 716894069236

Collection: Serie 100

Finish: Isenberg Green

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691LG

Model: Isg-100-2691

UPC: 716894069242

Collection: Serie 100

Finish: Leaf Green

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

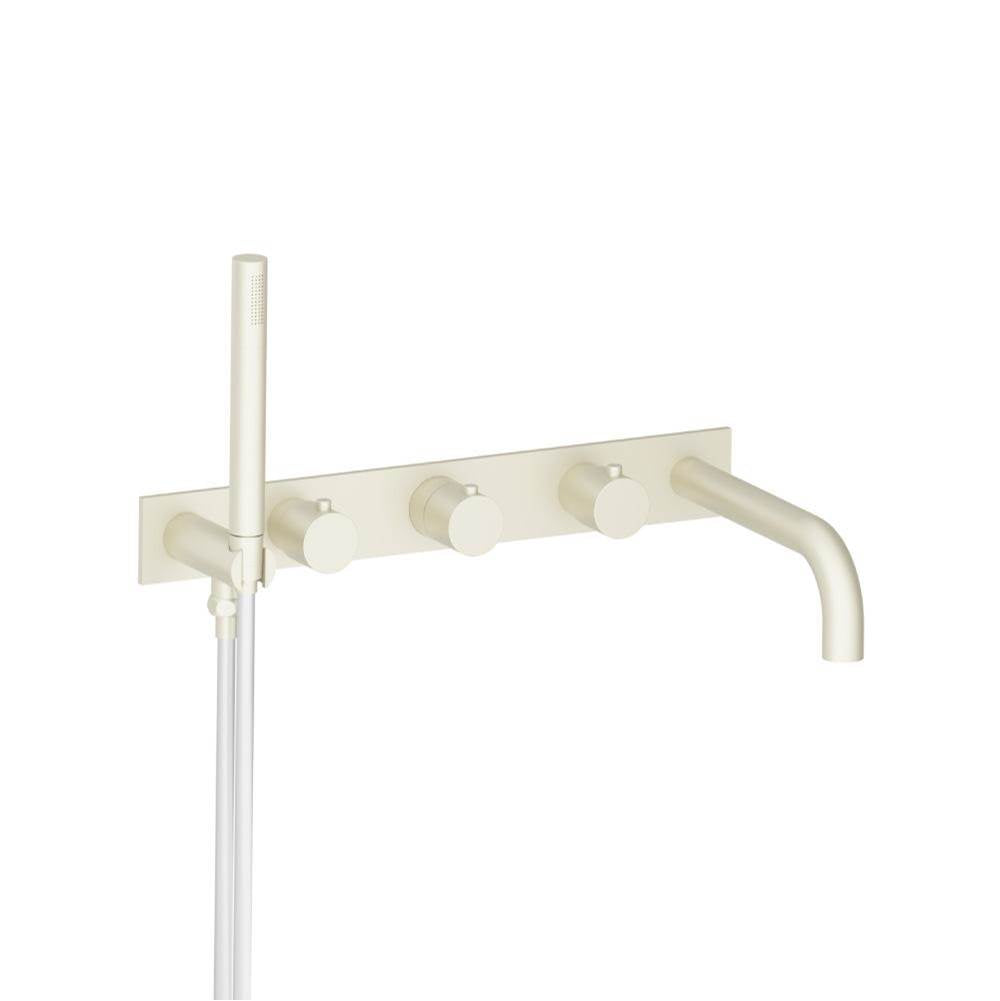

SKU: 100.2691LT

Model: Isg-100-2691

UPC: 716894069235

Collection: Serie 100

Finish: Light Tan

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

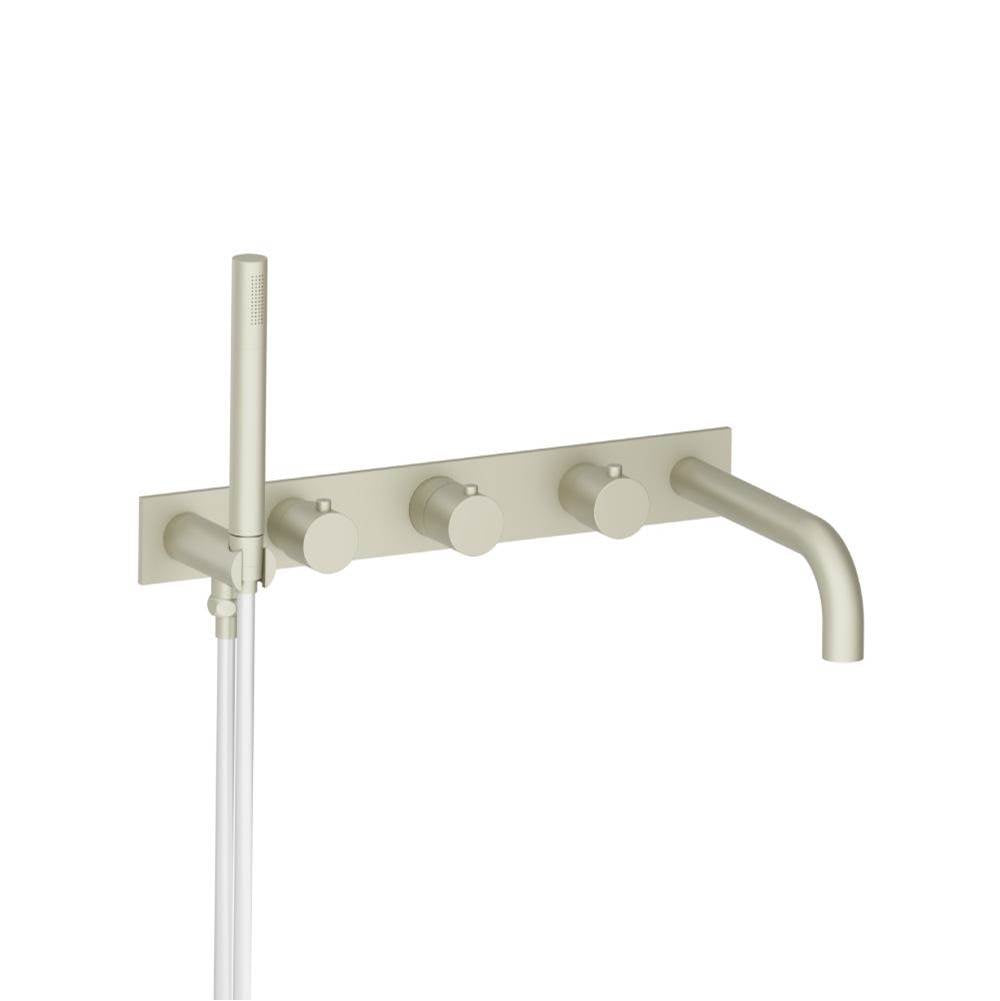

SKU: 100.2691LV

Model: Isg-100-2691

UPC: 716894069239

Collection: Serie 100

Finish: Light Verde

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

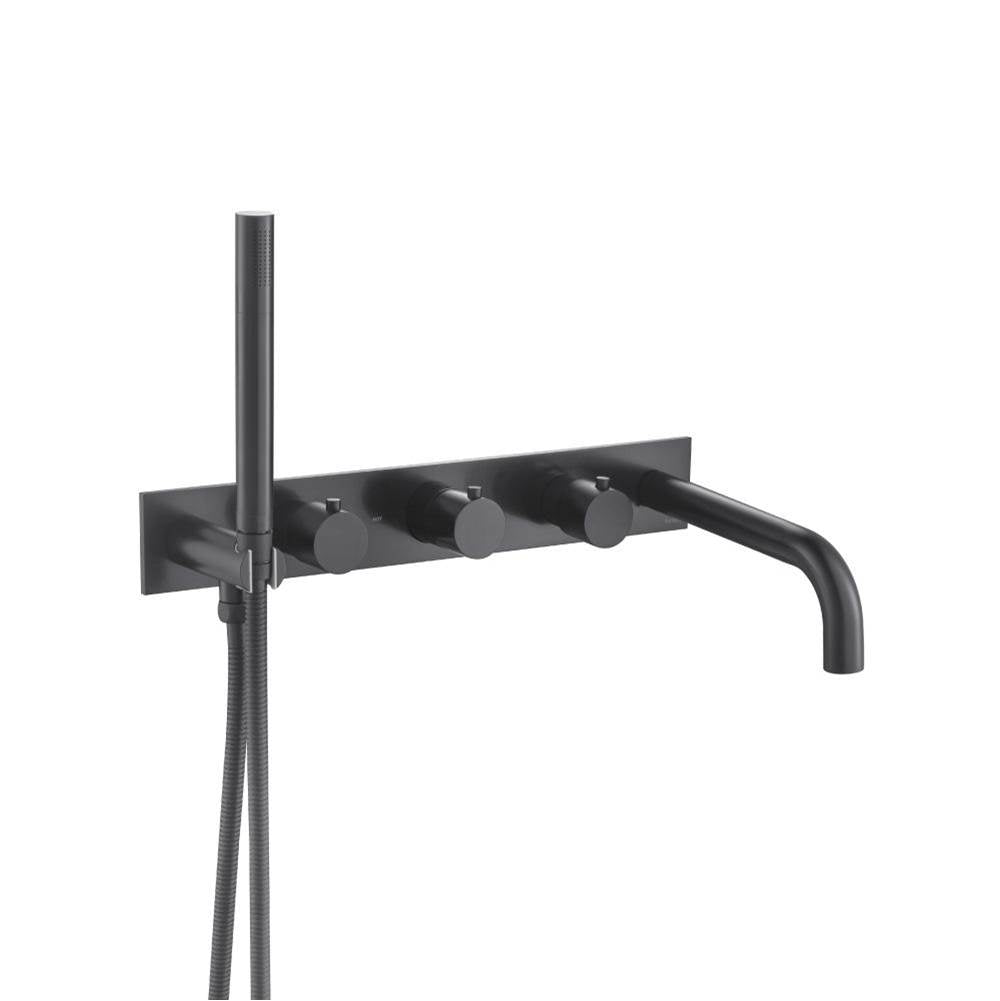

SKU: 100.2691MB

Model: Isg-100-2691

UPC: 712198301615

Collection: Serie 100

Finish: Matte Black

Finish Group: Black

Ship Length: 24 in

Ship Width: 9 in

Ship Height: 7 in

Ship Weight: 16 lbs

Mounting: Wall

Style List: Contemporary,Modern

Flow Rate GPM: 1.8 GPM

Number of Handles: 3

Video1: https://youtu.be/dS8PMizwW7o

Video 2: https://player.vimeo.com/video/811845072

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691NB

Model: Isg-100-2691

UPC: 716894069243

Collection: Serie 100

Finish: Navy Blue

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691RG

Model: Isg-100-2691

UPC: 716894069234

Collection: Serie 100

Finish: Rock Grey

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691SB

Model: Isg-100-2691

UPC: 702338183591

Collection: Serie 100

Finish: Satin Brass PVD

Finish Group: Brass Tones

Ship Weight: 16 lbs

Mounting: Wall

Style List: Contemporary,Modern

Flow Rate GPM: 1.8 GPM

Video1: https://youtu.be/dS8PMizwW7o

Video 2: https://player.vimeo.com/video/811845072

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691SG

Model: Isg-100-2691

UPC: 716894069250

Collection: Serie 100

Finish: Steel Grey

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691SKB

Model: Isg-100-2691

UPC: 716894069246

Collection: Serie 100

Finish: Sky Blue

Finish Group: Solid Colors

Ship Weight: 16 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.2691
• 2 Output Ports
• Hand Shower Flow Rate Limited to 1.8 GPM
• Hand Shower & Tub Spout positions can be swapped
• Extension Available - Part # TVH.2691E

SKU: 100.2691VB

Model: Isg-100-2691

UPC: 716894069237

Collection: Serie 100

Finish: Vortex Brown

Finish Group: Brown

Ship Weight: 16 lbs

Style List: Contemporary,Modern
