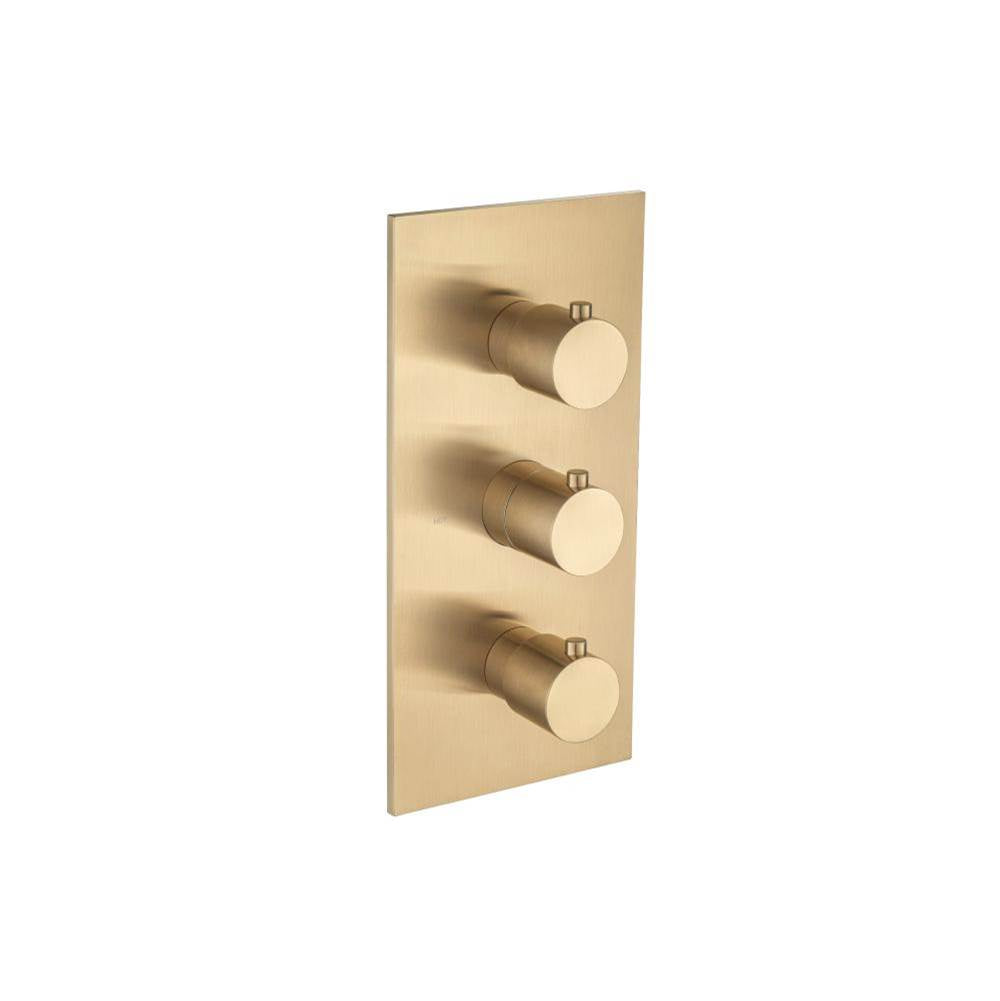

Isenberg By Flusso - 3/4'' Thermostatic Valve With Trim - 3 Output - Brushed Bronze Pvd

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501AG

Model: Isg-100-4501

UPC: 634392346475

Collection: Serie 100

Finish: Army Green

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

The 100.4501 is a thermostatic valve with .75'' NPT connection and two inlets for hot and cold water separately and 3 outputs with integral volume control functionality. The valve has a flow rate of 13.0 GPM at 60 PSI. Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs. Handle Operation - The middle handle is used to control temperature of water flowing through the 2 outlets. This product has three outputs and 2 outputs can be activated simultaneously as follows: Top Handle - Position 1- Output 1 activeTop Handle - Position 2- Output 2 activeTop Handle - Position OFF- Output 1 and 2 deactivatedBottom Handle - Position ON- Output 3 activeBottom Handle - Position OFF- Output 3 deactivated It is important to note that Outputs 1 and 2 cannot be activated simultaneously but outputs 1 and 3 can be activated simultaneously and also outputs 2 and 3 can be activated simultaneously. As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77'' and 3.44''. Also, the valve must be installed vertical and not at an angle. In case, a tile is thicker or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4501 valve is 1.40'' inches). Extension kits comprises of thermostatic handle extension, which can be ordered separately in chrome, brushed nickel or other special finishes. Cut Out Dimensions - The cut out in wall should be 8.81'' X 4.44'' inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall. Trims - The trim comprises of well finished trim plate and handle knobs. The trim plate is used to cover the wall and has markings for ON/OFF, 1/2/OFF and HOT/COLD for temperature control handle and volume control handles. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly. Any 4501 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501BN

Model: Isg-100-4501

UPC: 634392348589

Collection: Serie 100

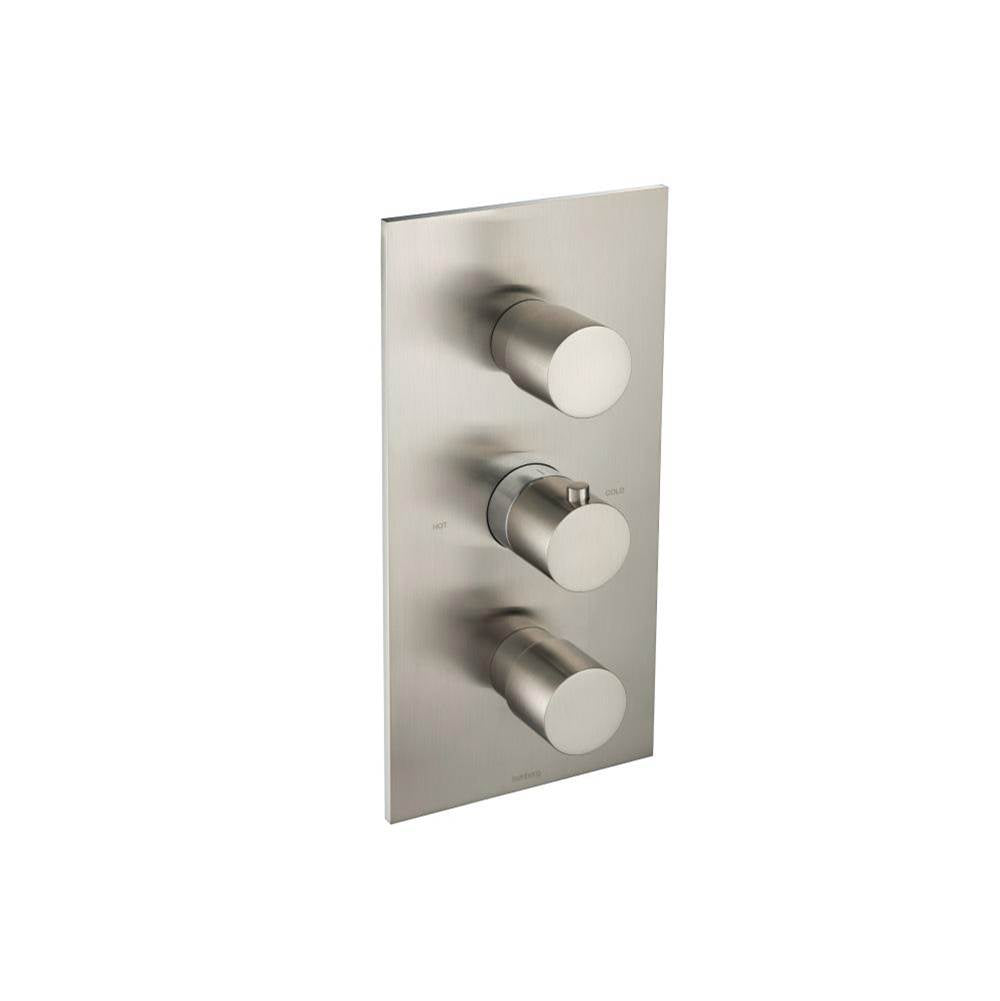

Finish: Brushed Nickel PVD

Finish Group: Nickel Tones

Width: 4.76 in

Height: 11.41 in

Ship Length: 15 in

Ship Width: 12 in

Ship Height: 9 in

Ship Weight: 10.9 lbs

Length: 5.51 in

Country: US

Style List: Contemporary,Modern

Made In USA: Yes

Number of Handles: 3

Video1: https://youtu.be/ROIv6SaaY3I

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501BP

Model: Isg-100-4501

UPC: 634392346480

Collection: Serie 100

Finish: Blue Platinum

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

The 100.4501 is a thermostatic valve with .75'' NPT connection and two inlets for hot and cold water separately and 3 outputs with integral volume control functionality. The valve has a flow rate of 13.0 GPM at 60 PSI. Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs. Handle Operation - The middle handle is used to control temperature of water flowing through the 2 outlets. This product has three outputs and 2 outputs can be activated simultaneously as follows: Top Handle - Position 1- Output 1 activeTop Handle - Position 2- Output 2 activeTop Handle - Position OFF- Output 1 and 2 deactivatedBottom Handle - Position ON- Output 3 activeBottom Handle - Position OFF- Output 3 deactivated It is important to note that Outputs 1 and 2 cannot be activated simultaneously but outputs 1 and 3 can be activated simultaneously and also outputs 2 and 3 can be activated simultaneously. As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77'' and 3.44''. Also, the valve must be installed vertical and not at an angle. In case, a tile is thicker or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4501 valve is 1.40'' inches). Extension kits comprises of thermostatic handle extension, which can be ordered separately in chrome, brushed nickel or other special finishes. Cut Out Dimensions - The cut out in wall should be 8.81'' X 4.44'' incheswhich is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall. Trims - The trim comprises of well finished trim plate and handle knobs. The trim plate is used to cover the wall and has markings for ON/OFF, 1/2/OFF and HOT/COLD for temperature control handle and volume control handles. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly. Any 4501 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501CP

Model: Isg-100-4501

UPC: 634392346486

Collection: Serie 100

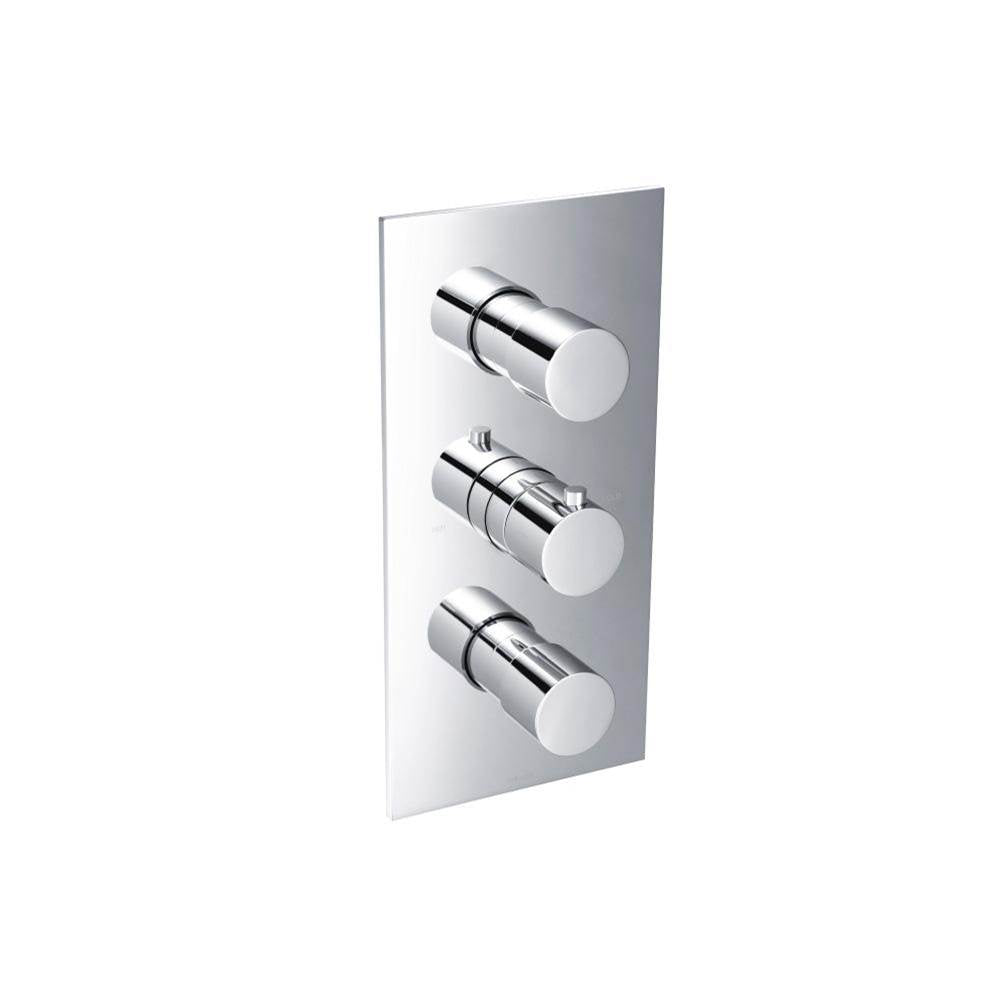

Finish: Chrome

Finish Group: Chrome

Width: 4.76 in

Height: 11.41 in

Ship Length: 15 in

Ship Width: 12 in

Ship Height: 9 in

Ship Weight: 10.9 lbs

Length: 5.51 in

Country: US

Style List: Contemporary,Modern

Made In USA: Yes

Number of Handles: 3

Video1: https://youtu.be/ROIv6SaaY3I

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501CR

Model: Isg-100-4501

UPC: 634392346483

Collection: Serie 100

Finish: Crimson

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501DG

Model: Isg-100-4501

UPC: 634392346476

Collection: Serie 100

Finish: Dark Grey

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501DGR

Model: Isg-100-4501

UPC: 634392346468

Collection: Serie 100

Finish: Dark Green

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501DR

Model: Isg-100-4501

UPC: 634392346473

Collection: Serie 100

Finish: Deep Red

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501DT

Model: Isg-100-4501

UPC: 634392346467

Collection: Serie 100

Finish: Dark Tan

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501GB

Model: Isg-100-4501

UPC: 634392346479

Collection: Serie 100

Finish: Gloss Black

Finish Group: Black

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501GMG

Model: Isg-100-4501

UPC: 634392346484

Collection: Serie 100

Finish: Gun Metal Grey

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E**

SKU: 100.4501GW

Model: Isg-100-4501

UPC: 634392346482

Collection: Serie 100

Finish: Gloss White

Finish Group: White

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501IG

Model: Isg-100-4501

UPC: 634392346471

Collection: Serie 100

Finish: Isenberg Green

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501LG

Model: Isg-100-4501

UPC: 634392346477

Collection: Serie 100

Finish: Leaf Green

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501LT

Model: Isg-100-4501

UPC: 634392346470

Collection: Serie 100

Finish: Light Tan

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501LV

Model: Isg-100-4501

UPC: 634392346474

Collection: Serie 100

Finish: Light Verde

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501MB

Model: Isg-100-4501

UPC: 712198301745

Collection: Serie 100

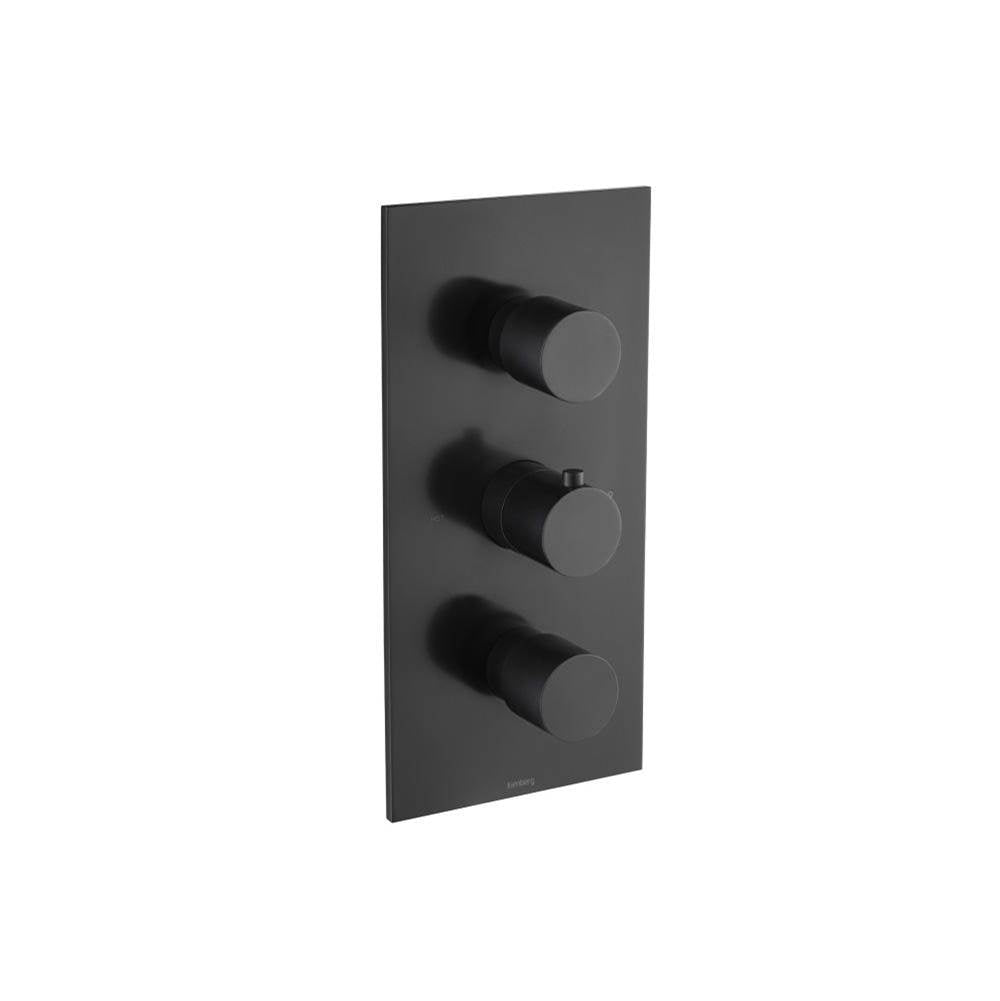

Finish: Matte Black

Finish Group: Black

Ship Length: 15 in

Ship Width: 12 in

Ship Height: 9 in

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

Number of Handles: 3

Video1: https://youtu.be/ROIv6SaaY3I

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501NB

Model: Isg-100-4501

UPC: 634392346478

Collection: Serie 100

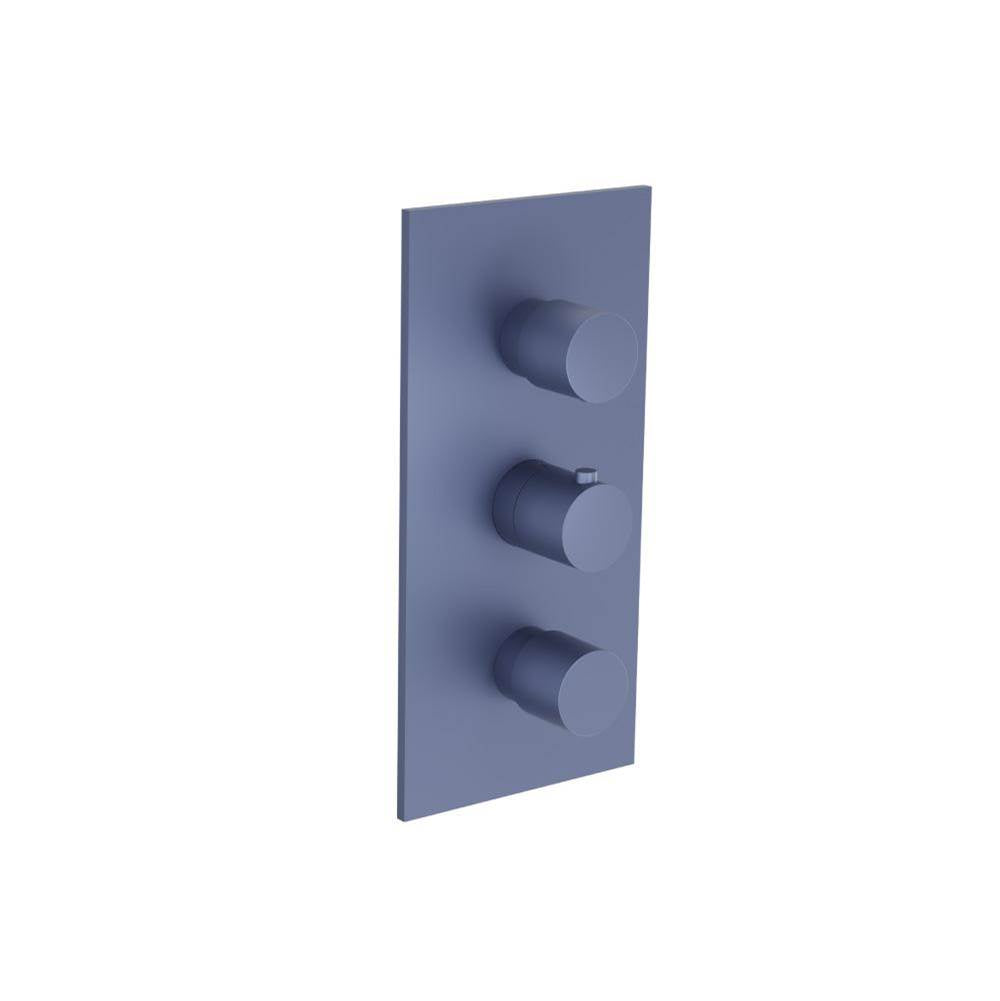

Finish: Navy Blue

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501RG

Model: Isg-100-4501

UPC: 634392346469

Collection: Serie 100

Finish: Rock Grey

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501SB

Model: Isg-100-4501

UPC: 712198303916

Collection: Serie 100

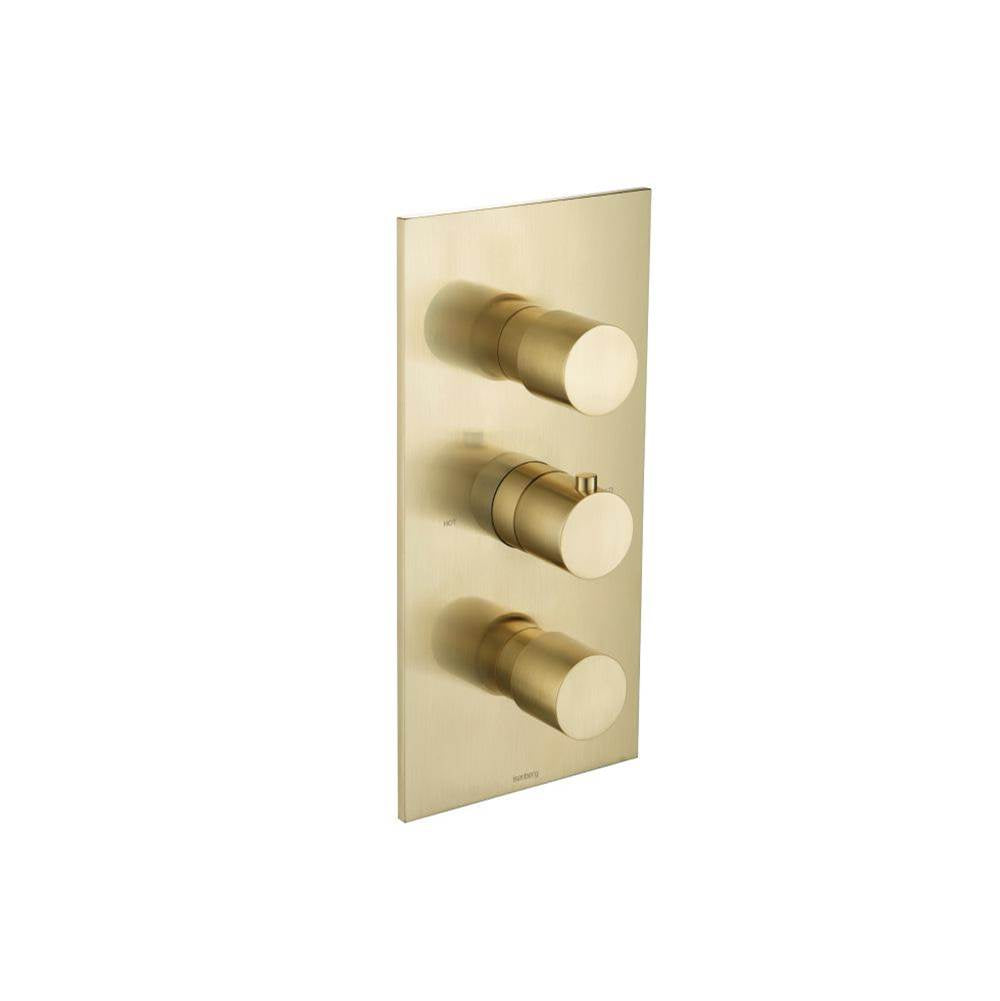

Finish: Satin Brass PVD

Finish Group: Brass Tones

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

Video1: https://youtu.be/ROIv6SaaY3I

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501SG

Model: Isg-100-4501

UPC: 634392346485

Collection: Serie 100

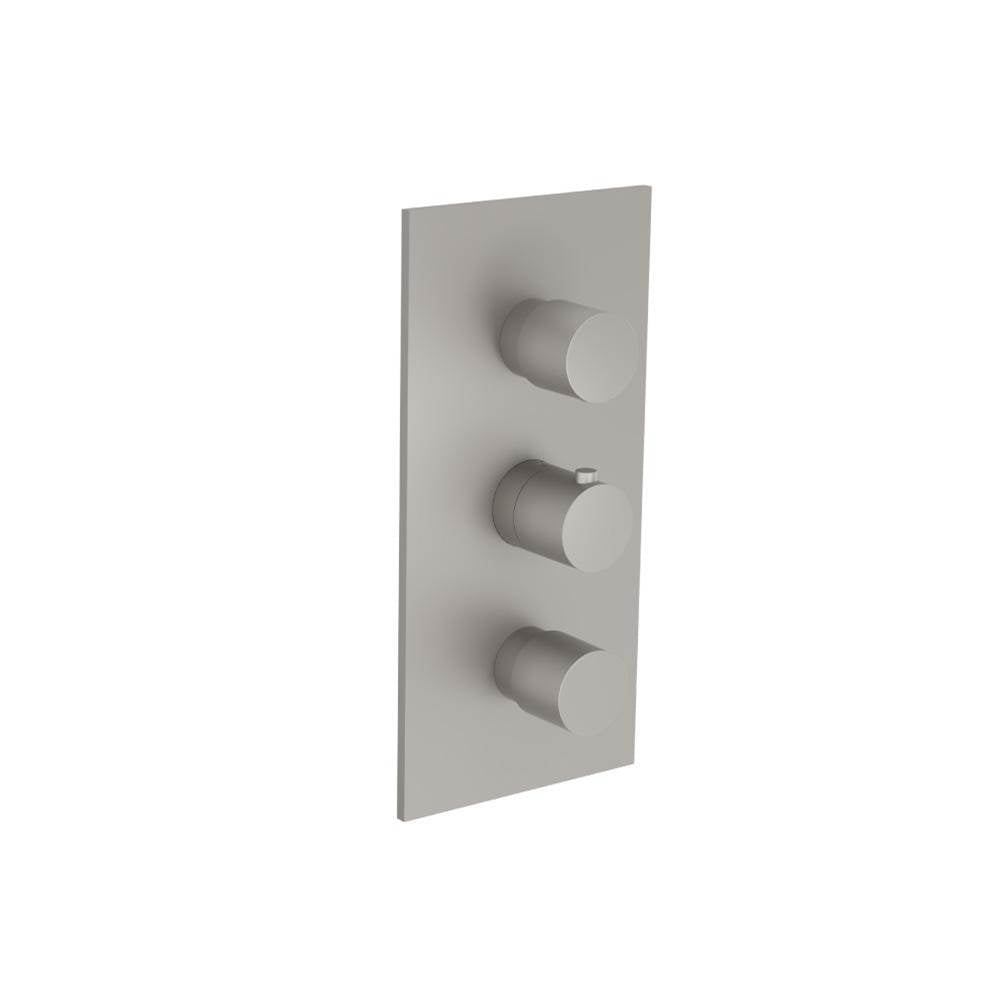

Finish: Steel Grey

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501SKB

Model: Isg-100-4501

UPC: 634392346481

Collection: Serie 100

Finish: Sky Blue

Finish Group: Solid Colors

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern

• Solid Brass Construction
• Includes Thermostatic Valve - TVH.4501
• 3 Output Ports
• Extensions Available - TVH.4401E

SKU: 100.4501VB

Model: Isg-100-4501

UPC: 634392346472

Collection: Serie 100

Finish: Vortex Brown

Finish Group: Brown

Ship Weight: 10.9 lbs

Style List: Contemporary,Modern
