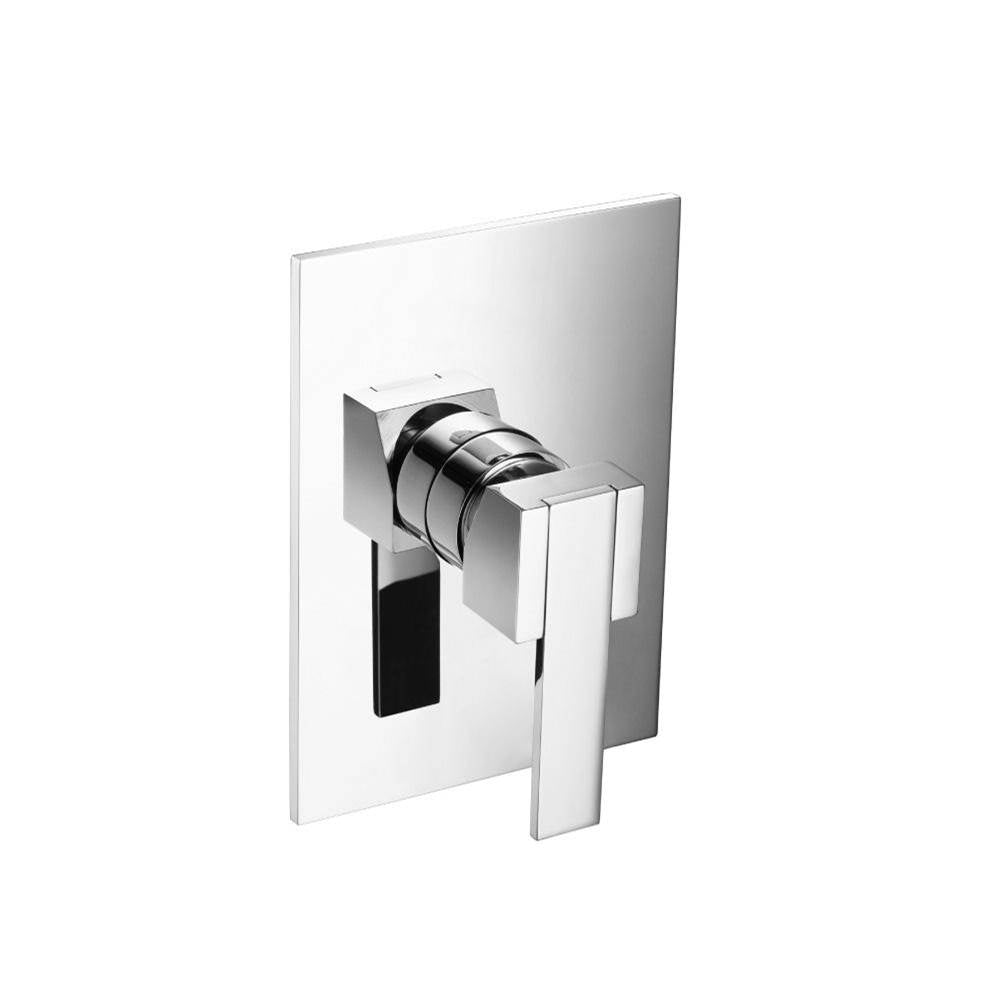

Isenberg By Flusso - Shower Trim With Pressure Balance Valve - Chrome

The 150.2200 Pressure Balance shower valve has a .5'' NPT male connection. It is single control valve with two inputs for hot/cold water and one output (the bottom output comes capped and should remain capped). The valve has a flow rate of 5.5 GPM at 60 PSI. Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs. Handle Operation - The volume and temperature of water is controlled by the single handle. Lift the handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water. Cut Out Dimensions - The cut out in wall should be 4.60'' x 4.76'' Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall. Trims - The trim set for PBV1005AS consists of a trim plate and handle knob. The trim plate has markings for HOT/COLD. Extension kit can be ordered separately in case the handles need to be extended for proper fit. Any trim ending in 2200 or 2201 can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.

• Solid Brass Construction
• Includes Pressure Balance Valve - PBV1005AS
• Lift Handle to control Volume. Turn left for Hot. Right for Cold.
• Extension Available - PBV.2100E

SKU: 150.2200CP

Model: Isg-150-2200

UPC: 716894069503

Collection: Serie 150

Finish: Chrome

Finish Group: Chrome

Width: 4.72 in

Height: 7.55 in

Ship Length: 10 in

Ship Width: 7 in

Ship Height: 10 in

Ship Weight: 6 lbs

Length: 5.51 in

Country: US

Style List: Contemporary,Modern

Made In USA: Yes

Number of Handles: 1

Video1: https://youtu.be/5RrIiOu1pwA
