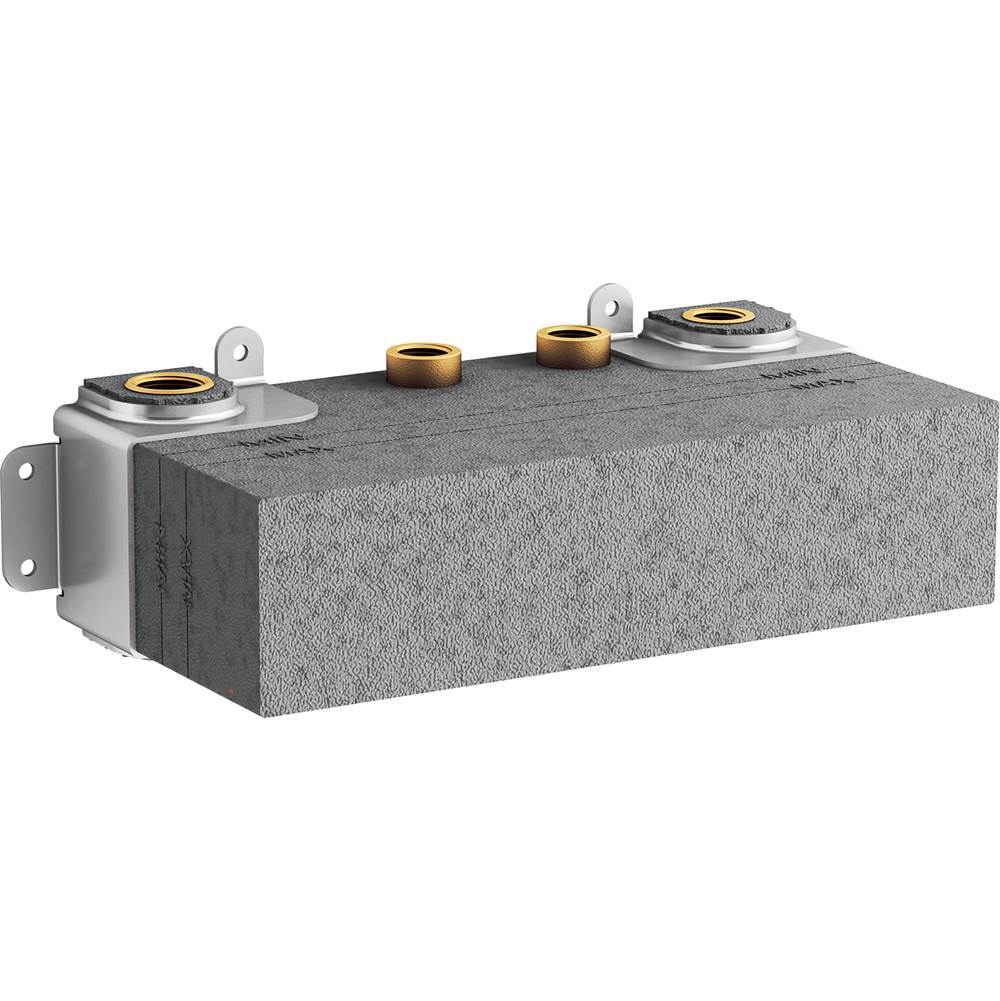

Kohler - Anthem Three-port recessed mechanical thermostatic valve

Anthem Three-port recessed mechanical thermostatic valve

• High-flow thermostatic mixing valve
• Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
• Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
• 3/4'' female NPT inlet connections
• 1/2'' female NPT outlet connections
• Service stops with integral filters
• Antiscald protection
• Integrated adjustable high-temperature limit stop to control maximum water temperature
• Adjustable comfort setting (preset at approximately 104°F)
• Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired

Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With three independently controllable ports, this valve is ideally suited for applications where up to three outlets are required.

SKU: 26341-NA

Alt SKU: K-26341-NA

Model: Kol-26341

UPC: 885612005113

Collection: Anthem

Width: 13.96 in

Height: 4.88 in

Weight: 10.66 lbs

Ship Length: 15.32 in

Ship Width: 8.19 in

Ship Height: 7.44 in

Ship Weight: 10.66 lbs

Length: 6.1 in

Country: CN

Material: Brass/Plastic

Intro Date: 2022-01-05 00:00:00.000
