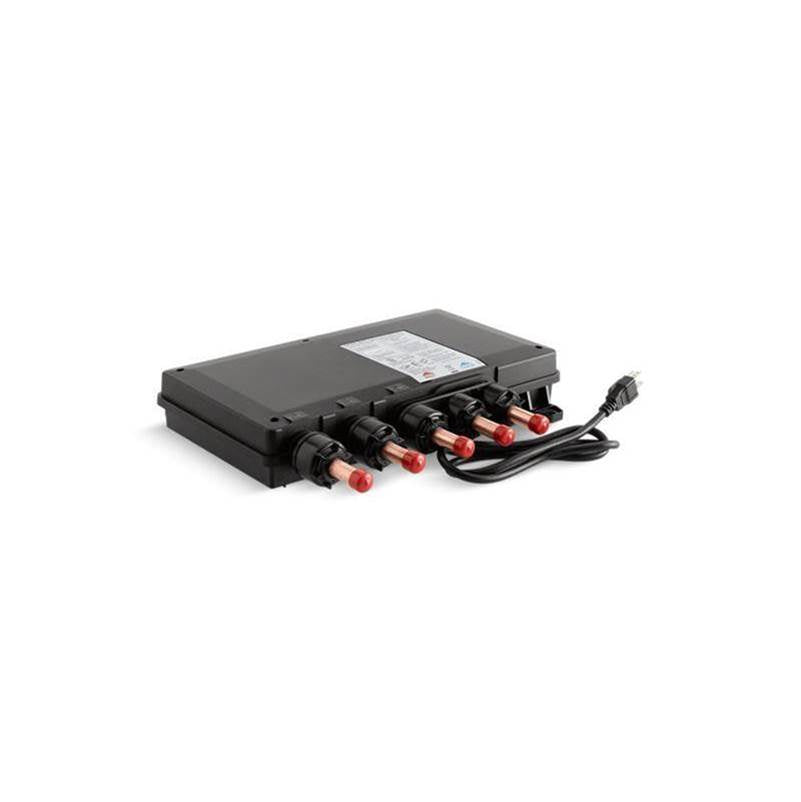

Kohler - DTV+E Three-port digital thermostatic valve

DTV Three-port digital thermostatic valve

• Digitally controlled thermostatic mixing valve
• Antiscald protection
• Three independently controllable 1/2'' (13 mm) outlets with copper tube connections
• Up to 13 gpm (49.2 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 8 gpm (30.3 lpm) from one outlet
• 1/2'' (13 mm) inlets with copper tube connections
• High-temperature limit setting for additional protection

For custom showering applications, this valve elevates your showering experience through the power of technology, giving you more options for cleansing and relaxation than ever. Digital thermostatic technology provides accurate, precise, and consistent temperature control. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the DTV+ digital system, and its easy plug-and-go design makes installation simple. With three independently controllable outlet ports, this valve is ideally suited for applications where up to three shower outlets are required. Additionally, with the DTV+ system, this valve can also be used in combination with a second digital valve to provide either additional outlets or to deliver two different water temperatures at the same time.

SKU: 557-K1-NA

Alt SKU: K-557-K1-NA

Model: Kol-557-k1

UPC: 885612355690

Collection: Dtv

Width: 15.125 in

Height: 2.688 in

Ship Length: 18.75 in

Ship Width: 5.75 in

Ship Height: 4.75 in

Ship Weight: 5.93 lbs

Length: 13.375 in

Country: US

Material: Brass/Plastic

Intro Date: 2014-12-15 00:00:00.000
