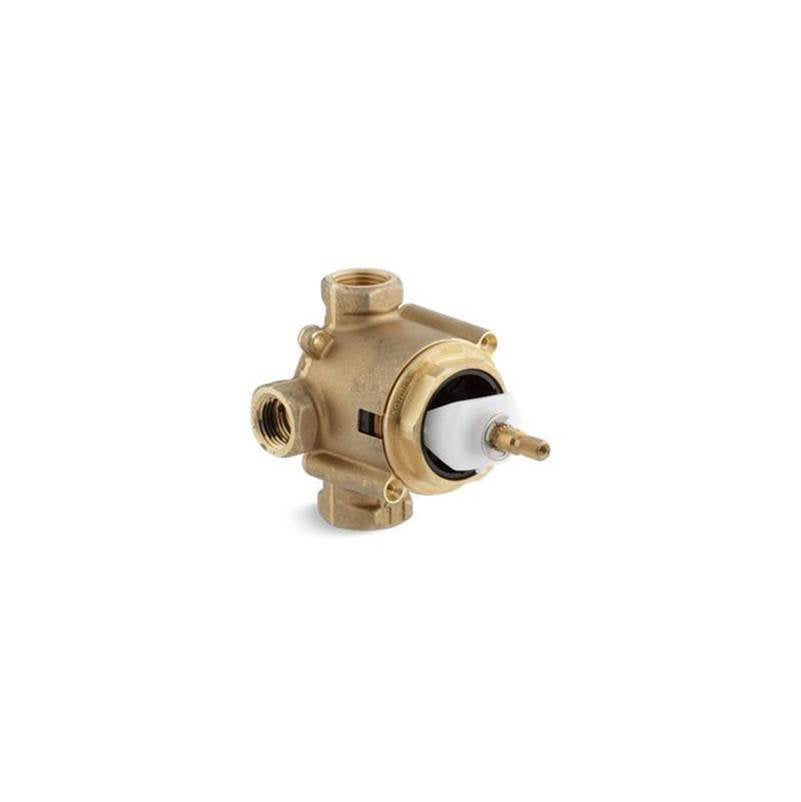

Kohler - MasterShower 3/4'' 2- or 3-way transfer valve

MasterShower 3/4'' 2- or 3-way transfer valve

• Transfers water flow to up to three separate components/outlets
• Components/outlets can be operated individually or in any combination of two components at the same time
• Supplied as a three-way transfer valve (360 degree handle rotation) but can be configured onsite for two-way operation (120 degree handle rotation)
• Single-handle operation
• Using one outlet: 18 gpm flow rate at 45 psi; using two outlets: 20.8 gpm at 45 psi
• One 3/4'' female NPT inlet connection
• Three 1/2'' female NPT outlet connections
• Controls all functions from a single valve
• Requires additional valve/s to control On/Off operation and temperature (sold separately)
• Requires transfer/diverter valve trim (sold separately)

The KOHLER® MasterShower transfer valve brings innovation and flexibility as a custom shower solution. When paired with compatible trim, its three-way design allows control of up to three separate components either turned on individually, or two of the three turned on simultaneously. The valve can also easily be configured as a two-way transfer valve.

SKU: 728-K-NA

Alt SKU: K-728-K-NA

Model: Kol-728-k

UPC: 650531952448

Collection: Mastershower

Ship Length: 9.75 in

Ship Width: 4.75 in

Ship Height: 4.25 in

Ship Weight: 2.51 lbs

Country: US

Material: Brass

Flow Rate GPM: 18 GPM

Intro Date: 2010-04-15 00:00:00.000
