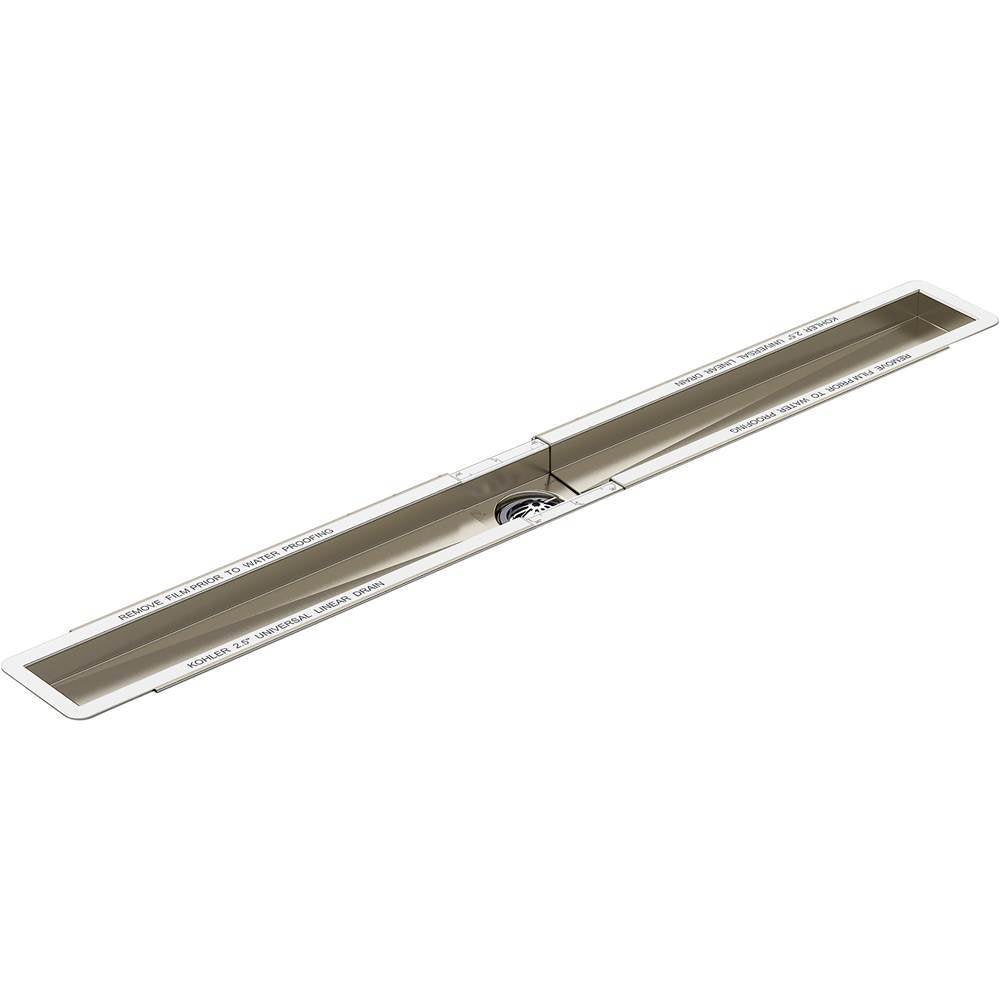

Kohler - 2-1/2'' x 36''-60'' linear drain channel

2-1/2'' x 36''-60'' linear drain channel

• Flush-to-wall design (recommended) provides a clean aesthetic; can also be installed within shower floor interior
• Extend channel length from 36'' to 60'' for easier specification and precise wall-to-wall installation (if desired)
• Channel is pitched to outlet for easy cleaning and complete drainage; handles up to 15 gpm (56.8 lpm) flow capacity (rate may vary by installation)
• Drain outlet location can be adjusted to bypass joints, venting, or other in-floor obstacles
• Outlet adapter can be preattached to drain pipe for simplified installation and access to couplings
• Easy-clean domed hair strainer prevents clogs
• Subfloor brackets are height-adjustable to ensure the drain channel is mounted at the correct height during installation
• Removeable tile guide/mud guard keeps channel clean of debris during installation and provides a straight edge to tile against
• Wide-top flange with protective film ensures excellent waterproof adhesion
• Includes subfloor mounting brackets, tile guide/mud guard, hair strainer, and threaded collar, along with straight pipe and threaded outlet adapters
• Can also be installed with KOHLER side-outlet adapter K-28987 (sold separately)
• Requires Kohler 2-1/2'' x 36'', 2-1/2'' x 48'', or 2-1/2'' x 60'' linear drain grate

Incorporate this easy-to-install, linear shower drain into your next contemporary shower project for a sleek, minimalist look with maximum function. This innovative drain solution delivers the best-in-class quality you’ve come to expect from KOHLER, along with customizable channel length and outlet location, premium hair strainer, and durable, easy-to-clean electropolished stainless steel base. Designed for single-slope tiled shower floors and flush-to-wall placements, the drain channel is effortless to size, adjust, and tile against in your home or commercial shower installation.

SKU: 80646-NA

Alt SKU: K-80646-NA

Model: Kol-80646

UPC: 885612935106

Width: 4.65 in

Height: 3 in

Ship Length: 39.57 in

Ship Width: 6.57 in

Ship Height: 4.13 in

Ship Weight: 12.63 lbs

Length: 61.42 in

Country: CN

Material: Stainless Steel

Intro Date: 2021-09-22 00:00:00.000
