Kohler - Rite-Temp Valve body and pressure-balancing cartridge kit with service stops and female NPT connections, project pack

Rite-Temp Valve body and pressure-balancing cartridge kit with service stops and female NPT connections, project pack

• Project pack: Supplied 12 per case

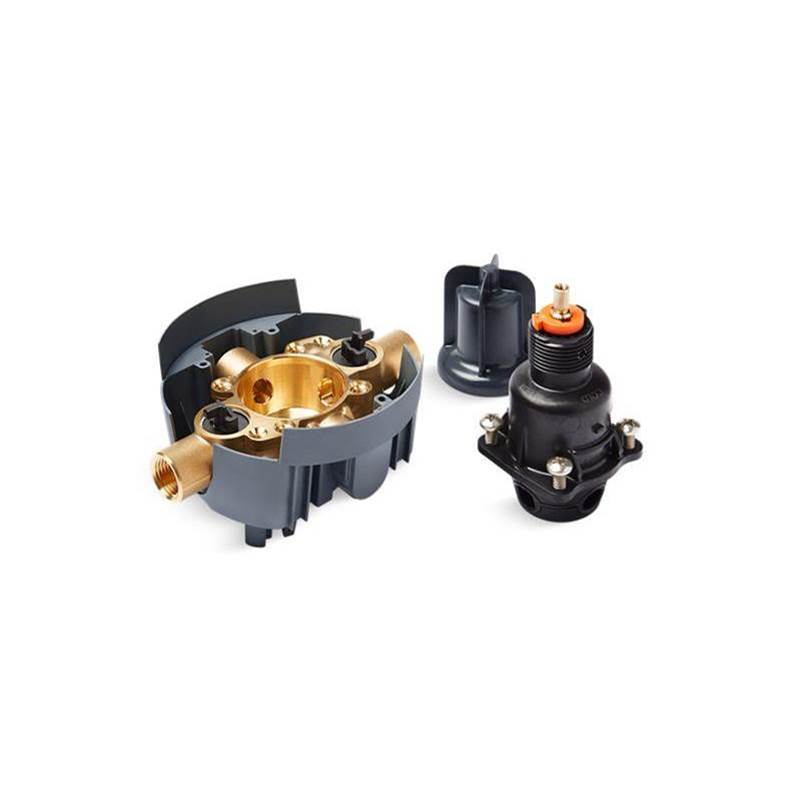

• Includes valve body, pressure balance cartridge, rough-in guide, and mudguard
• 1/2'' female NPT inlets and outlets with stops
• Service stops include integral check valves
• Requires valve trim to complete installation (sold separately)
• Includes valve body, pressure balance cartridge, rough-in guide, and mudguard
• 5.0 gpm (18.9 lpm) maximum flow rate at 45 psi (3.1 bar)
• Single lever design cycles from off through cold to hot
• Antiscald protection
• One-piece cartridge design simplifies installation and maintenance
• Adjustable high-temperature limit stop to control maximum water temperature
• Pressure-balancing diaphragm technology maintains outlet temperature within +/-3°F during water pressure fluctuations

The new KOHLER Rite-Temp valve system sets new standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The Rite-Temp valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your finished trim and finish from KOHLER''''s comprehensive design portfolio. Should you decide to remodel in the future, simply change out your trim for the latest design without the need to change the valve installation.

SKU: P8304-IPS-NA

Alt SKU: K-P8304-IPS-NA

Model: Kol-p8304-ips

UPC: 885612626035

Collection: Rite Temp

Width: 5 in

Height: 5 in

Ship Length: 17.25 in

Ship Width: 12.25 in

Ship Height: 13.88 in

Ship Weight: 1.9 lbs

Length: 4.8 in

Country: US

Material: Brass/Plastic

Prop 65: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Flow Rate GPM: 5 GPM

Intro Date: 2017-04-25 00:00:00.000
